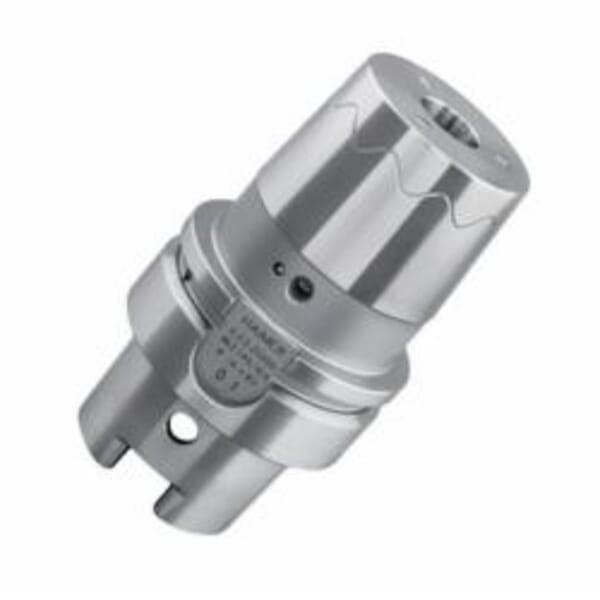

Haimer A63.145.20.6 Heavy Duty Ultra Short Shrink Fit Chuck, Tapered Shank, HSKA63 Machine Side, For Use With High Performance Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer A63.145.20.6 Heavy Duty Ultra Short Shrink Fit Chuck, Tapered Shank, HSKA63 Machine Side, For Use With High Performance Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129503215

MFG #A63.145.20.6

Haimer Shrink Fit Chuck, Heavy Duty Ultra Short, System Size Machine Side: HSKA63, 20 mm Hole Dia, Tapered Shank, 46 mm Nose Dia, 80 mm Projection, For Use With: High Performance Inductive Shrink Fit Unit, HSS and Solid Carbide Tools, 53 mm Clamping Length, Through Coolant: Yes

$656.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 53 mm

Hole Diameter: 20 mm

Nose Diameter: 46 mm

Projection: 80 mm

Shank Type: Tapered

Suitable For Use With: High Performance Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

System Size Machine Side: HSKA63

Through Coolant (Yes/No): Yes

Type: Heavy Duty Ultra Short

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Smooth clamping of the tool shank
No deformation at the tool shank after shrink process
Reinforced outer contour
With dirt groove in the clamping bore
With threaded holes in order to balance with balancing screws
High runout accuracy 3 micro meter

DIN 69893-1
