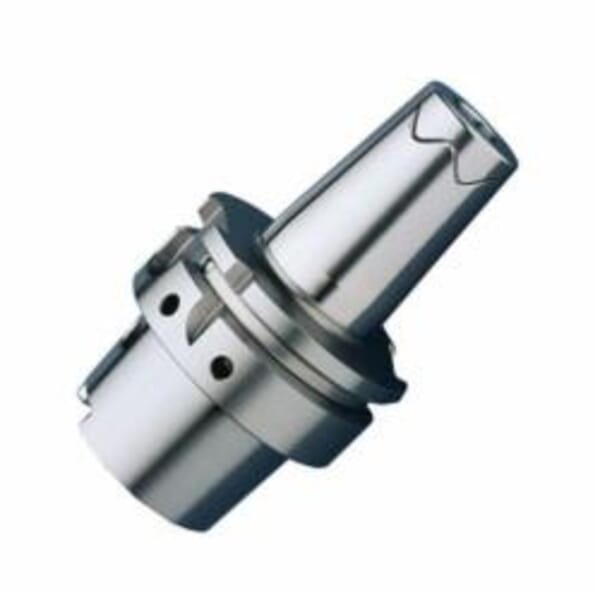

Haimer A63.145.12.37 Ultra Short Power Shrink Fit Chuck With Safe-Lock, Tapered Shank, HSKA63 Machine Side, For Use With Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer A63.145.12.37 Ultra Short Power Shrink Fit Chuck With Safe-Lock, Tapered Shank, HSKA63 Machine Side, For Use With Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129503199

MFG #A63.145.12.37

UPC #4034221063670

Haimer Power Shrink Fit Chuck, Ultra Short, System Size Machine Side: HSKA63, 12 mm Diameter Hole, Tapered Shank, 26.5 mm Diameter Nose, 70 mm Projection, For Use With: Inductive Shrink Fit Unit, HSS and Solid Carbide Tools, 46 mm Clamping Length, Yes Through Coolant

$629.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 46 mm

Hole Diameter: 12 mm

Nose Diameter: 26.5 mm

Projection: 70 mm

Shank Type: Tapered

Suitable For Use With: Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

System Size Machine Side: HSKA63

Through Coolant (Yes/No): Yes

Type: Ultra Short

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Highest cutting performance with higher spindle speeds, feeds and larger cutting depths, resulting in shorter cycle times
Quieter running, therefore better surface quality and protection of tools, spindles and machines
Higher machining accuracy
With threaded holes for balancing screws
Cool jet bores that can be sealed included
Cooling with cool Flash for an extra charge

DIN 69893-1
