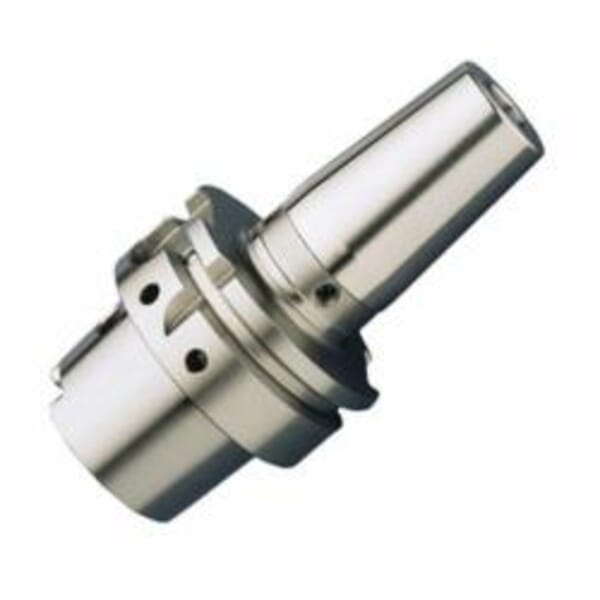

Haimer A63.140.06.2 Standard Short Shrink Fit Chuck, Tapered Shank, HSKA63 Machine Side, For Use With Shrink Fit Unit, HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129503008

MFG #A63.140.06.2

UPC #4034221055590

Haimer Shrink Fit Chuck, Standard Short, System Size Machine Side: HSKA63, 6 mm Hole Dia, Tapered Shank, 21 mm Nose Dia, 80 mm Projection, For Use With: Shrink Fit Unit, HSS and Solid Carbide Tools, 27 mm Body Dia Workpiece Side, 36 mm Clamping Length, Yes Through Coolant (Yes/No)

$488.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 27 mm

Clamping Length: 36 mm

Country of Origin: DE

Hole Diameter: 6 mm

Manufacturer Name: Haimer

Nose Diameter: 21 mm

Projection: 80 mm

Shank Type: Tapered

Suitable For Use With: Shrink Fit Unit, HSS and Solid Carbide Tools

System Size Machine Side: HSKA63

Through Coolant (Yes/No): Yes

Type: Standard Short

Back-Up Screw

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Heat resistant hot working steel
With threaded holes in order to balance with balancing screws
High runout accuracy (Less than 0.003 mm)
Extreme clamping torque by high pressing in the clamping bore
Short chamfer
Dynamic form reinforced shank at long tool holders

Back-Up Screw

DIN 69893-1
