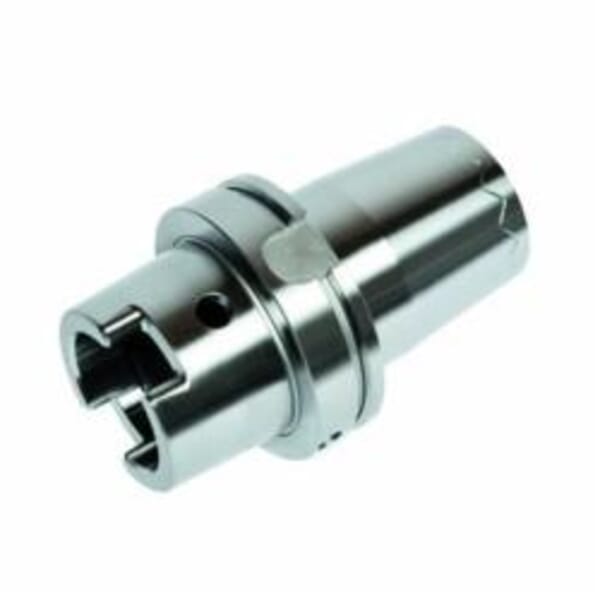

Haimer A10.150.25.6 Heavy Duty Short Shrink Fit Chuck, Tapered Shank, HSKA100 Machine Side, For Use With High Performance Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129502616

MFG #A10.150.25.6

UPC #4034221063915

Haimer Shrink Fit Chuck, Heavy Duty Short, System Size Machine Side: HSKA100, 25 mm Diameter Hole, Tapered Shank, 63 mm Diameter Nose, 110 mm Projection, For Use With: High Performance Inductive Shrink Fit Unit, HSS and Solid Carbide Tools, 72 mm Body Diameter Workpiece Side, 58 mm Clamping Length, Yes Through Coolant

$1,112.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 72 mm

Clamping Length: 58 mm

Country of Origin: DE

Hole Diameter: 25 mm

Manufacturer Name: Haimer

Nose Diameter: 63 mm

Projection: 110 mm

Shank Type: Tapered

Suitable For Use With: High Performance Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

System Size Machine Side: HSKA100

Through Coolant (Yes/No): Yes

Type: Heavy Duty Short

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
More accurate than DIN
Smooth clamping of the tool shank
Reinforced outer contour
With internal groove in the clamping bore
With threaded holes for balancing screws
No deformation at the tool shank after shrink process
High runout accuracy
Reinforced wall thickness at the clamping range
Extremely rigid outer geometry
Expansion grooves in the clamping bore
Standard with cool jet (can be re-sealed)

DIN 69893-1
