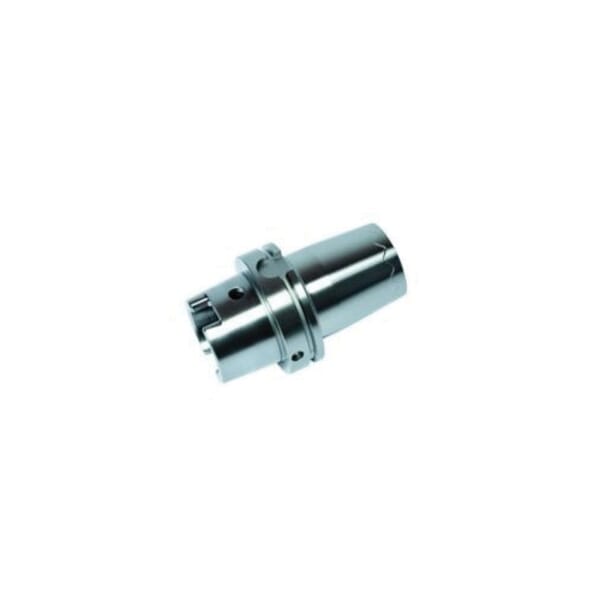

Haimer A10.140.3/8Z.3 Short Standard Power Shrink Fit Chuck, Tapered Shank, HSKA100 Machine Side, For Use With Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer A10.140.3/8Z.3 Short Standard Power Shrink Fit Chuck, Tapered Shank, HSKA100 Machine Side, For Use With Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129502470

MFG #A10.140.3/8Z.3

UPC #4034221088048

Haimer Power Shrink Fit Chuck, Short Standard, System Size Machine Side: HSKA100, 3/8 in Diameter Hole, Tapered Shank, 1.06 in Diameter Nose, 3.54 in Projection, For Use With: Inductive Shrink Fit Unit, HSS and Solid Carbide Tools, 2.09 in Body Diameter Workpiece Side, 1.65 in Clamping Length, Yes Through Coolant

$927.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 2.09 in

Clamping Length: 1.65 in

Hole Diameter: 3/8 in

Nose Diameter: 1.06 in

Projection: 3.54 in

Shank Type: Tapered

Suitable For Use With: Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

System Size Machine Side: HSKA100

Through Coolant (Yes/No): Yes

Type: Short Standard

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Increased machining capacity due to higher spindle speeds, higher feed rates and larger cutting depths
Shorter processing times
Quieter running, therefore better surface quality and protection of tools, spindles and machines
Higher machining accuracy
With threaded holes in order to balance with balancing screws
Cool jet bores that can be sealed included

DIN 69893-1
