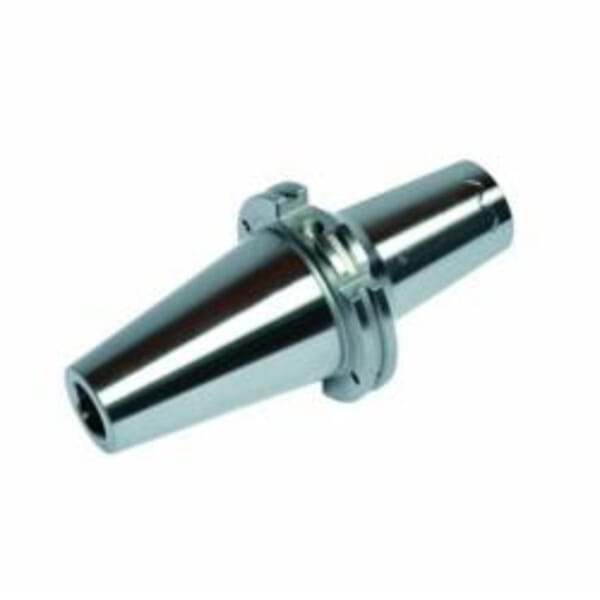

Haimer 50.846.1/2Z.37 Power Shrink Fit Chuck, Tapered Shank, CAT50 Machine Side, For Use With HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129501627

MFG #50.846.1/2Z.37

UPC #4034221087591

Haimer Power Shrink Fit Chuck, System Size Machine Side: CAT50, 1/2 in Hole Dia, Tapered Shank, 1.06 in Nose Dia, 7.87 in Projection, For Use With: HSS and Solid Carbide Tools, 2-3/4 in Body Dia Workpiece Side, 1.85 in Clamping Length, Yes Through Coolant (Yes/No)

$1,384.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 2-3/4 in

Clamping Length: 1.85 in

Country of Origin: DE

Hole Diameter: 1/2 in

Manufacturer Name: Haimer

Nose Diameter: 1.06 in

Projection: 7.87 in

Shank Type: Tapered

Suitable For Use With: HSS and Solid Carbide Tools

System Size Machine Side: CAT50

Through Coolant (Yes/No): Yes

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Increased machining capacity due to higher spindle speed, higher feed and larger cutting depth
Shorter processing times
Quieter running, therefore better surface quality and protection of tools, spindles and machines
Higher machining accuracy
Coolant supply form adb
With threaded holes in order to balance with balancing screws
Cool jet coolant bores that can be sealed included
Safe-Lock pullout protection
High rigidity
Slim at the tip
Dampen vibrations
Equally suited to high speed manufacturing and heavy milling
High runout accuracy (Less than 3 µm)
Low tendency towards vibrations by optimised outer geometry
Dirt groove in the clamping bore for safe clamping force

ASME B5.50
