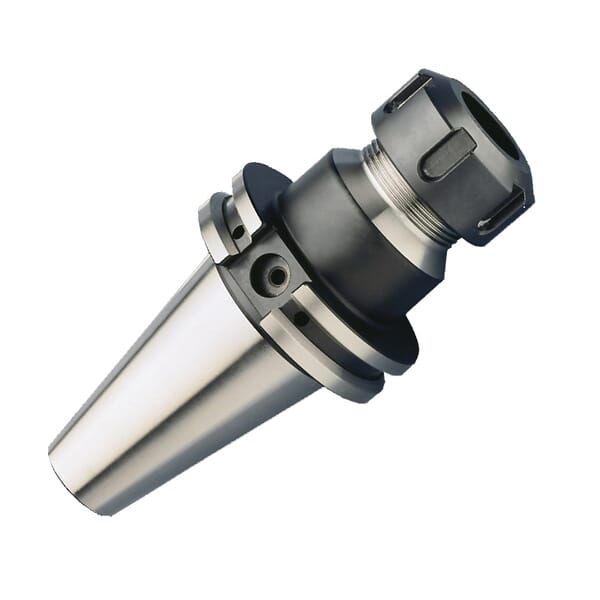

Haimer 50.722.20 Oversized Collet Chuck, Tapered Shank, ER20 Collet System, ER20 Chuck

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer 50.722.20 Oversized Collet Chuck, Tapered Shank, ER20 Collet System, ER20 Chuck

ManufacturerHaimer

Part #129501493

MFG #50.722.20

UPC #4034221035912

Haimer Collet Chuck, Oversized, 1.34 in Diameter Nose, 6.3 in Head Length/Projection, ER20 Collet System, Tapered Shank, ER20 Chuck, CAT50 Taper, 1.34 in Diameter Collet Nut, Yes Through Coolant (Yes/No)

$501.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Chuck Size: ER20

Collet Nut Diameter: 1.34 in

Collet System: ER20

Head Length/Projection: 6.3 in

Nose Diameter: 1.34 in

Shank Type: Tapered

Taper Size: CAT50

Through Coolant (Yes/No): Yes

Type: Oversized

Precision AT3 tolerance shank
Balanced to G2.5 at 22000 rpm or ULess than 1 gmm
All functional surfaces precision ground
Fine balanced ER nut
High runout accuracy
Coolant supply form ADB

Locknut

For clamping tools with cylindrical shank in ER collets

ASME B5.50
