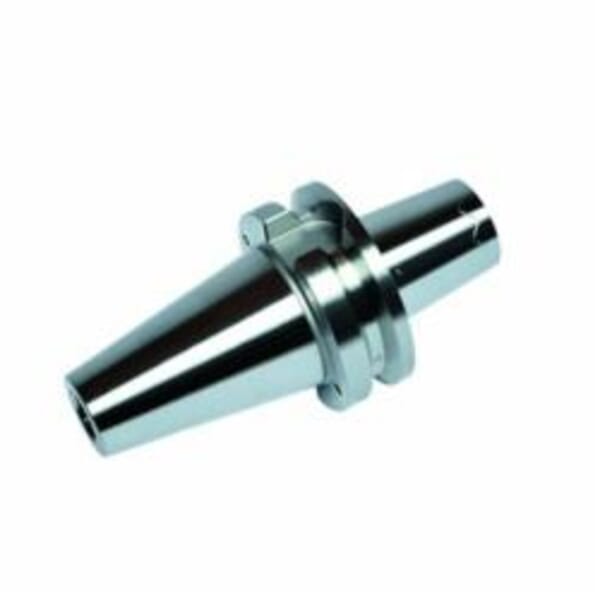

Haimer 50.640.12.3 Short Power Shrink Fit Chuck, Tapered Shank, BT50 Machine Side, For Use With HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129501339

MFG #50.640.12.3

UPC #4034221062956

Haimer Power Shrink Fit Chuck, Short, System Size Machine Side: BT50, 12 mm Diameter Hole, Tapered Shank, 27 mm Diameter Nose, 100 mm Projection, For Use With: HSS and Solid Carbide Tools, 55 mm Body Diameter Workpiece Side, 47 mm Clamping Length, Yes Through Coolant

$858.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 55 mm

Clamping Length: 47 mm

Country of Origin: DE

Hole Diameter: 12 mm

Manufacturer Name: Haimer

Nose Diameter: 27 mm

Projection: 100 mm

Shank Type: Tapered

Suitable For Use With: HSS and Solid Carbide Tools

System Size Machine Side: BT50

Through Coolant (Yes/No): Yes

Type: Short

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
Coolant supply form adb
Increased machining capacity due to higher spindle speed, higher feed and larger cutting depth
Shorter processing times
Quieter running, therefore better surface quality and protection of tools, spindles and machines
Higher machining accuracy
With threaded holes in order to balance with balancing screws
Cool jet bores that can be sealed included

JIS B 6339
