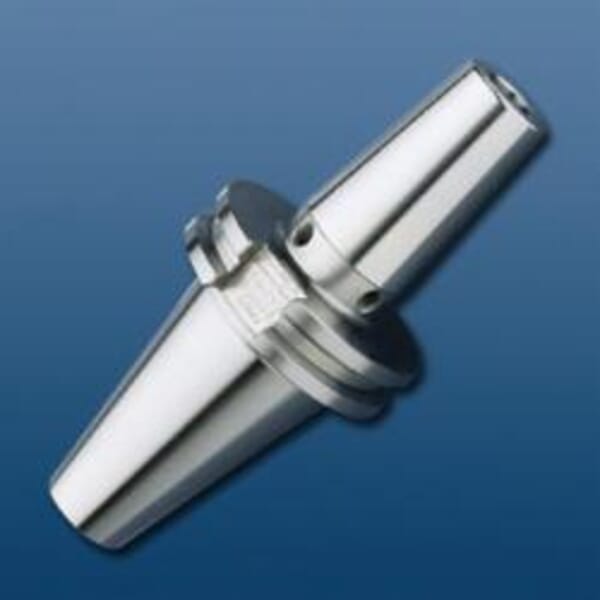

Haimer 50.440.16.2 Standard Short Shrink Fit Chuck, Tapered Shank, SK50 Machine Side, For Use With HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129501118

MFG #50.440.16.2

UPC #4034221060730

Haimer Shrink Fit Chuck, Standard Short, System Size Machine Side: SK50, 16 mm Diameter Hole, Tapered Shank, 27 mm Diameter Nose, 80 mm Projection, For Use With: HSS and Solid Carbide Tools, 34 mm Body Diameter Workpiece Side, 50 mm Clamping Length, Yes Through Coolant

$668.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 34 mm

Clamping Length: 50 mm

Hole Diameter: 16 mm

Nose Diameter: 27 mm

Projection: 80 mm

Shank Type: Tapered

Suitable For Use With: HSS and Solid Carbide Tools

System Size Machine Side: SK50

Through Coolant (Yes/No): Yes

Type: Standard Short

Back-Up Screw

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Heat resistant hot working steel
Hardened 54-2 HRC
H6 shank tolerance
Cool jet coolant bores included
Cooling with cool Flash for an extra charge
Extreme clamping torque by high pressing in the clamping bore
Short chamfer
Dynamic form - reinforced shank at long tool holders. compromise between slimness (marginal interference contour) and rigidity
Threaded bores for simple and fast balancing with screws

DIN 69871

Back-Up Screw
