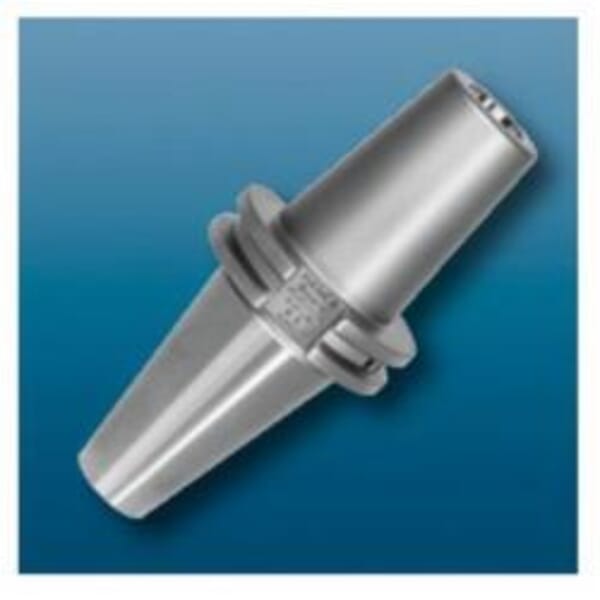

Haimer 40.840.3/16Z.00 Standard Basic Short Shrink Fit Chuck, Tapered Shank, CAT40 Machine Side, For Use With HSS, Solid Carbide Tools and All Kind of Shrink Fit Units

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer 40.840.3/16Z.00 Standard Basic Short Shrink Fit Chuck, Tapered Shank, CAT40 Machine Side, For Use With HSS, Solid Carbide Tools and All Kind of Shrink Fit Units

ManufacturerHaimer

Part #129500857

MFG #40.840.3/16Z.00

Haimer Shrink Fit Chuck, Standard Basic Short, System Size Machine Side: CAT40, 3/16 in Hole Dia, Tapered Shank, 0.39 in Nose Dia, 3.15 in Projection, For Use With: HSS, Solid Carbide Tools and All Kind of Shrink Fit Units, 0.47 in Clamping Length, Yes Through Coolant (Yes/No)

$305.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 0.47 in

Hole Diameter: 3/16 in

Nose Diameter: 0.39 in

Projection: 3.15 in

Shank Type: Tapered

Suitable For Use With: HSS, Solid Carbide Tools and All Kind of Shrink Fit Units

System Size Machine Side: CAT40

Through Coolant (Yes/No): Yes

Type: Standard Basic Short

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Form adb - central coolant supply and coolant channels through the flange which can be sealed again
Heat resistant hot working steel
Hardened 54-2 HRC
With threaded holes for balancing screws
Cool jet coolant bores that can be sealed included

ASME B5.50
