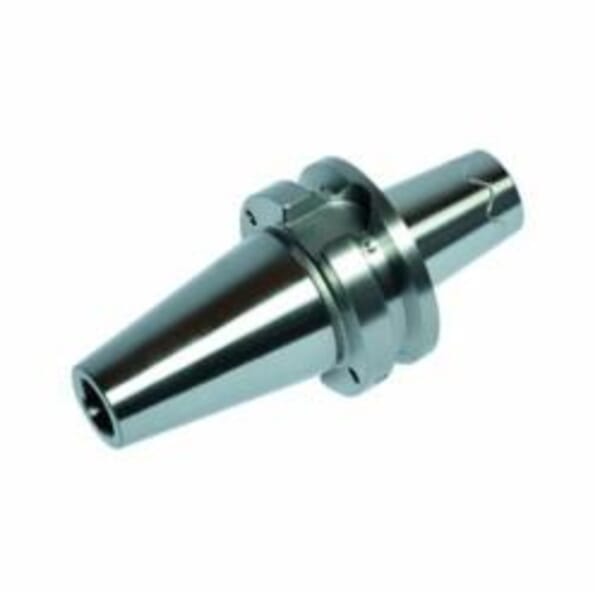

Haimer 40.645.12.3 Ultra Short Power Shrink Fit Chuck, Tapered Shank, BT40 Machine Side, For Use With HSS, Solid Carbide Tools and All Kind of Shrink Fit Units

ManufacturerHaimer

Part #129500710

MFG #40.645.12.3

UPC #4034221062444

Haimer Power Shrink Fit Chuck, Ultra Short, System Size Machine Side: BT40, 12 mm Hole Dia, Tapered Shank, 26.5 mm Nose Dia, 70 mm Projection, For Use With: HSS, Solid Carbide Tools and All Kind of Shrink Fit Units, 47 mm Clamping Length, Yes Through Coolant (Yes/No)

$445.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 47 mm

Hole Diameter: 12 mm

Nose Diameter: 26.5 mm

Projection: 70 mm

Shank Type: Tapered

Suitable For Use With: HSS, Solid Carbide Tools and All Kind of Shrink Fit Units

System Size Machine Side: BT40

Through Coolant (Yes/No): Yes

Type: Ultra Short

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Increased machining capacity due to higher spindle speed, higher feed and larger cutting depth
Shorter processing times
Higher machining accuracy
With threaded holes in order to balance with balancing screws
Cool jet bores that can be sealed included
Low tendency towards vibrations by optimised outer geometry
Slim design at the top
Very rigid shank
Dirt groove in the clamping bore for safe clamping force

JIS B 6339
