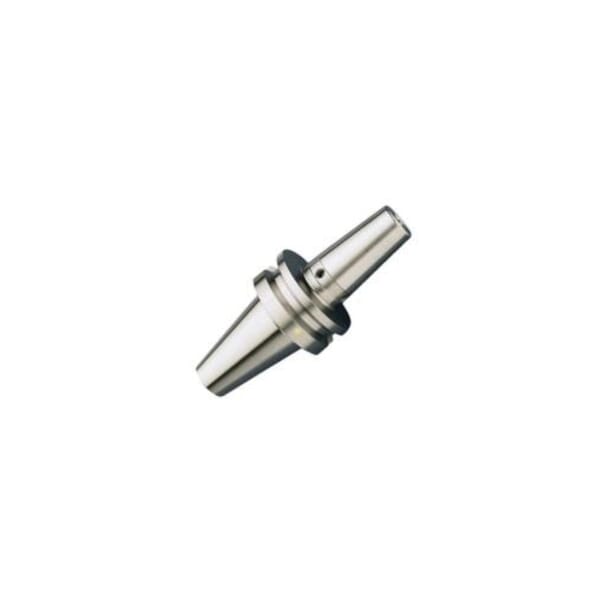

Haimer 40.642.08 Standard Oversize Shrink Fit Chuck, Tapered Shank, BT40 Machine Side, For Use With HSS, Solid Carbide Tools and All Kind of Shrink Fit Units

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer 40.642.08 Standard Oversize Shrink Fit Chuck, Tapered Shank, BT40 Machine Side, For Use With HSS, Solid Carbide Tools and All Kind of Shrink Fit Units

ManufacturerHaimer

Part #129500640

MFG #40.642.08

UPC #4034221020277

Haimer Shrink Fit Chuck, Standard Oversize, System Size Machine Side: BT40, 8 mm Diameter Hole, Tapered Shank, 21 mm Diameter Nose, 160 mm Projection, For Use With: HSS, Solid Carbide Tools and All Kind of Shrink Fit Units, 27 mm Body Diameter Workpiece Side, 36 mm Clamping Length, Yes Through Coolant

$457.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 27 mm

Clamping Length: 36 mm

Country of Origin: DE

Hole Diameter: 8 mm

Manufacturer Name: Haimer

Nose Diameter: 21 mm

Projection: 160 mm

Shank Type: Tapered

Suitable For Use With: HSS, Solid Carbide Tools and All Kind of Shrink Fit Units

System Size Machine Side: BT40

Through Coolant (Yes/No): Yes

Type: Standard Oversize

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Form adb - central coolant supply and coolant channels through the flange which can be sealed again
Heat resistant hot working steel
Hardened 54-2 HRC
With threaded holes in order to balance with balancing screws
Cooling with cool jet for an extra charge
Cooling with cool flash for an extra charge
Extreme clamping torque by high pressing in the clamping bore
Dynamic form - reinforced shank at long tool holders
Compromise between slimness (marginal interference contour) and rigidity
Threaded bores for simple and fast balancing with screws

Back-Up Screw

JIS B 6339

Back-Up Screw

Catalog

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 27 mm

Clamping Length: 36 mm

Country of Origin: DE

Hole Diameter: 8 mm

Manufacturer Name: Haimer

Nose Diameter: 21 mm

Projection: 160 mm

Shank Type: Tapered

Suitable For Use With: HSS, Solid Carbide Tools and All Kind of Shrink Fit Units

System Size Machine Side: BT40

Through Coolant (Yes/No): Yes

Type: Standard Oversize

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Form adb - central coolant supply and coolant channels through the flange which can be sealed again
Heat resistant hot working steel
Hardened 54-2 HRC
With threaded holes in order to balance with balancing screws
Cooling with cool jet for an extra charge
Cooling with cool flash for an extra charge
Extreme clamping torque by high pressing in the clamping bore
Dynamic form - reinforced shank at long tool holders
Compromise between slimness (marginal interference contour) and rigidity
Threaded bores for simple and fast balancing with screws

Back-Up Screw

JIS B 6339

Back-Up Screw

Catalog
