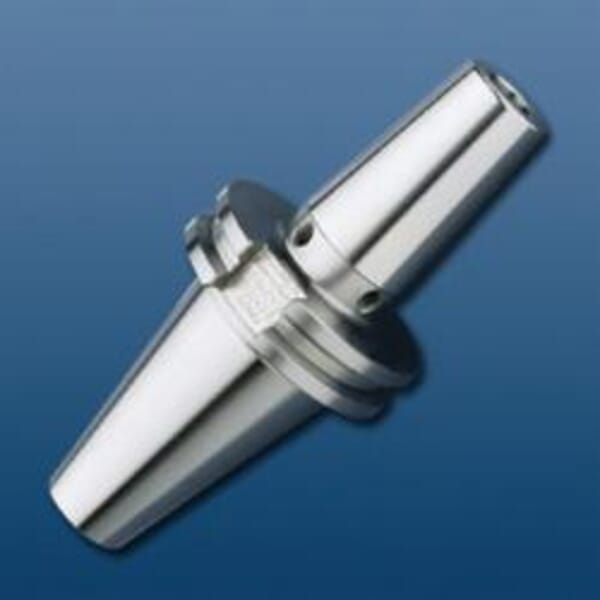

Haimer 40.446.10 Standard ZG200 Shrink Fit Chuck, Tapered Shank, SK40 Machine Side, For Use With HSS and Solid Carbide Tools

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer 40.446.10 Standard ZG200 Shrink Fit Chuck, Tapered Shank, SK40 Machine Side, For Use With HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129500439

MFG #40.446.10

UPC #4034221020017

Haimer Shrink Fit Chuck, Standard ZG200, System Size Machine Side: SK40, 10 mm Hole Dia, Tapered Shank, 24 mm Nose Dia, 200 mm Projection, For Use With: HSS and Solid Carbide Tools, 32 mm Body Dia Workpiece Side, 42 mm Clamping Length, Through Coolant: Yes

$527.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 32 mm

Clamping Length: 42 mm

Hole Diameter: 10 mm

Nose Diameter: 24 mm

Projection: 200 mm

Shank Type: Tapered

Suitable For Use With: HSS and Solid Carbide Tools

System Size Machine Side: SK40

Through Coolant (Yes/No): Yes

Type: Standard ZG200

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
Coolant supply form adb
Heat resistant hot working steel
Hardened 54-2 HRC
H6 shank tolerance
With threaded holes in order to balance with balancing screws
Cooling with cool jet for an extra charge
Cooling with cool flash for an extra charge

Back-Up Screw

DIN 69871

Back-Up Screw
