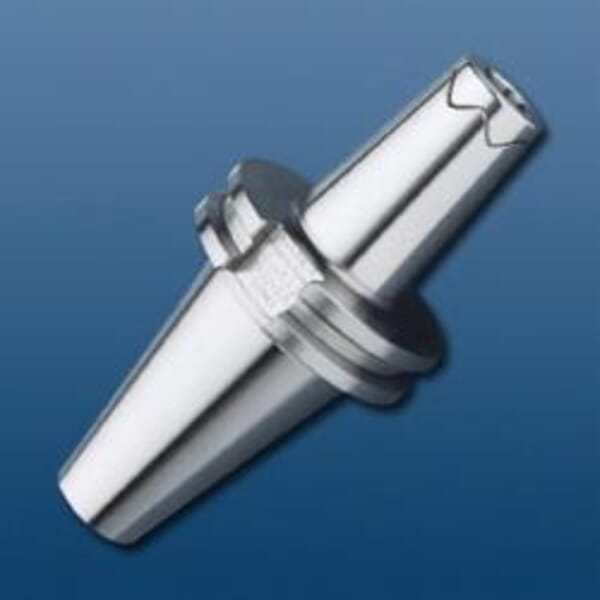

Haimer 40.444.32.37 ZG130 Power Shrink Fit Chuck With Safe-Lock, Tapered Shank, SK40 Machine Side, For Use With HSS and Solid Carbide Tools

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer 40.444.32.37 ZG130 Power Shrink Fit Chuck With Safe-Lock, Tapered Shank, SK40 Machine Side, For Use With HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129500419

MFG #40.444.32.37

UPC #4034221075598

Haimer Power Shrink Fit Chuck, ZG130, System Size Machine Side: SK40, 32 mm Diameter Hole, Tapered Shank, 44 mm Diameter Nose, 130 mm Projection, For Use With: HSS and Solid Carbide Tools, 53 mm Body Diameter Workpiece Side, 58 mm Clamping Length, Yes Through Coolant

$963.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 53 mm

Clamping Length: 58 mm

Hole Diameter: 32 mm

Nose Diameter: 44 mm

Projection: 130 mm

Shank Type: Tapered

Suitable For Use With: HSS and Solid Carbide Tools

System Size Machine Side: SK40

Through Coolant (Yes/No): Yes

Type: ZG130

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
Coolant supply form adb
Increased machining capacity due to higher spindle speed, higher feed and larger cutting depth
Shorter processing times
Quieter running, therefore better surface quality and protection of tools, spindles and machines
Higher machining accuracy
With threaded holes in order to balance with balancing screws
High rigidity, slim at the tip, dampen vibrations
Equally suited to high speed manufacturing and heavy milling
Universal usage, saves space in tool magazine

DIN 69871
