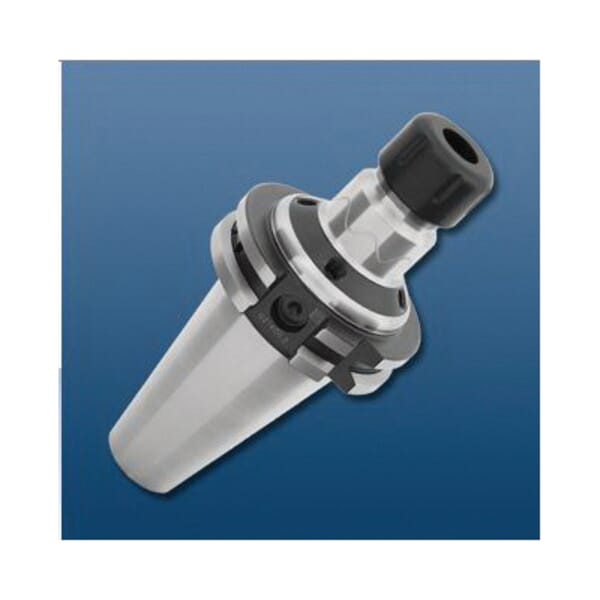

Haimer 40.320.25.3 Short Power Collet Chuck, Tapered Shank, ER25 Collet System, ER25 Chuck

ManufacturerHaimer

Part #129500256

MFG #40.320.25.3

UPC #4034221061232

Haimer Power Collet Chuck, Short, Series: Z-Carb-AP Z1PLC, 42 mm Nose Dia, 70 mm Head Length/Projection, ER25 Collet System, Tapered Shank, ER25 Chuck, SK40 Taper, 42 mm Collet Nut Dia, Yes Through Coolant (Yes/No)

$538.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Chuck Size: ER25

Collet Nut Diameter: 42 mm

Collet System: ER25

Country of Origin: DE

Head Length/Projection: 70 mm

Manufacturer Name: Haimer

Nose Diameter: 42 mm

Shank Type: Tapered

Taper Size: SK40

Through Coolant (Yes/No): Yes

Type: Short

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or ULess than 1 gmm
All functional surfaces precision ground
Accommodates all ER collets, Haimer power collets and Haimer Safe-Lock collets
High runout accuracy - 3 um at 3XD with Haimer power collets
High rigidity
Smoother running thanks to vibration absorbing geometry, therefore better surface quality and protection of tools, spindles and machines
Increased machining capacity due to higher spindle speeds, higher feed rates and larger cutting depths
Shorter processing times, higher machining accuracy, high clamping force
Equally suited to high speed manufacturing and heavy milling
Low tendency towards vibrations by rigid shank
High precision power collet with stabilization and concentration trough pilot of collet
Fine balanced power collet ER nut
With threaded holes in order to balance with balancing screws
Coolant supply form ADB

For clamping tools with cylindrical shank in Haimer power collets and ER collets

DIN 69871
