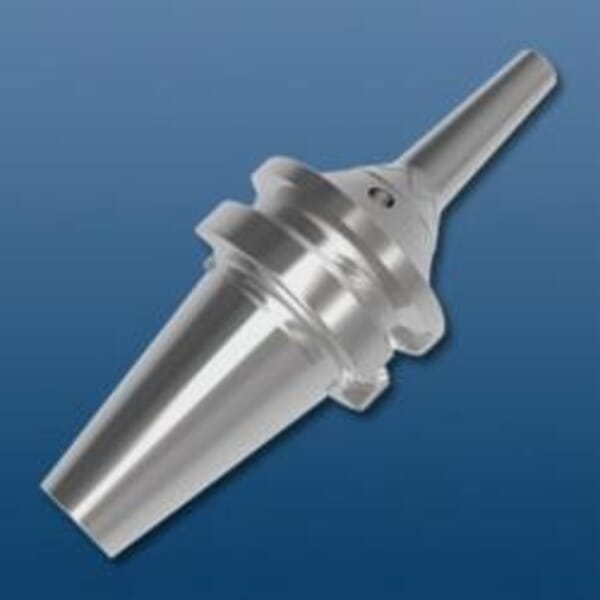

Haimer 30.671.06.8 ZG95 Power Mini Shrink Fit Chuck, Tapered Shank, BT30 Machine Side, For Use With Solid Carbide Tools

ManufacturerHaimer

Part #129500203

MFG #30.671.06.8

Haimer Power Mini Shrink Fit Chuck, ZG95, System Size Machine Side: BT30, 6 mm Hole Dia, Tapered Shank, 9 mm Nose Dia, 95 mm Projection, For Use With: Solid Carbide Tools, 42 mm Clamping Length, Yes Through Coolant (Yes/No)

$562.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 42 mm

Hole Diameter: 6 mm

Nose Diameter: 9 mm

Projection: 95 mm

Shank Type: Tapered

Suitable For Use With: Solid Carbide Tools

System Size Machine Side: BT30

Through Coolant (Yes/No): Yes

Type: ZG95

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
Coolant supply form AD
3 deg slope at the top
H6 shank tolerance
With threaded holes for balancing screws

JIS B 6339
