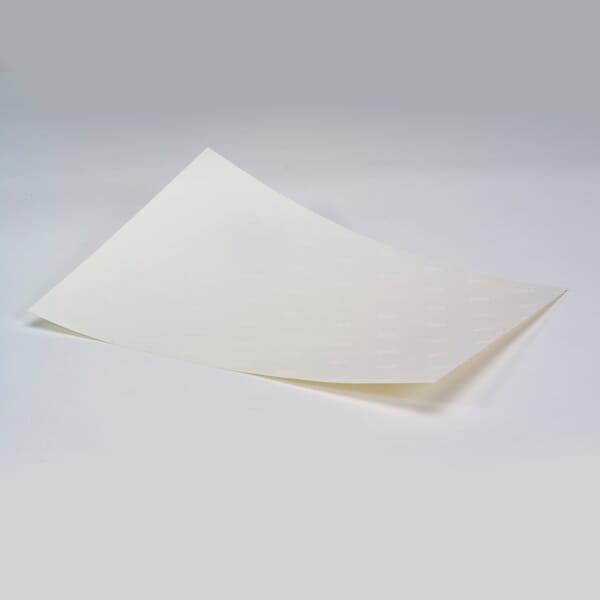

3M 7000115630 Single Coated Membrane Switch Spacer, 36 in L x 24 in W, 9.7 mil THK, 200MP Acrylic Adhesive, Polyester Film Backing, Clear

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

3M

3M 7000115630 Single Coated Membrane Switch Spacer, 36 in L x 24 in W, 9.7 mil THK, 200MP Acrylic Adhesive, Polyester Film Backing, Clear

Manufacturer3M

Part #120068316

MFG #7000115630

UPC #021200683169

3M, 7000115630, Membrane Switch Spacer, Single Coated, 36 in Length, 24 in Width, 9.7 mil Thickness, Clear, 200MP Acrylic Adhesive, Polyester Film Backing, 68 in-oz Adhesion Strength, 3609 psi Tensile Strength, 400 deg F Maximum Operating, -40 deg F Minimum Operating, Specifications Met: ASTM D3330/D3654/D2370

$1,114.28

/ CS

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: 3M

Adhesion Strength: 68 in-oz

Adhesive Material: 200MP Acrylic

Backing Material: Polyester Film

Color: Clear

Country of Origin: US

Length: 36 in

Manufacturer Name: 3M

Maximum Operating Temperature: 400 deg F

Minimum Operating Temperature: -40 deg F

Specifications Met: ASTM D3330/D3654/D2370

Tensile Strength: 3609 psi

Thickness: 9.7 mil

Type: Single Coated

Width: 24 in

Easy to die cut and process
Use for steel rule die cutting and kiss cutting
Use to protect leads, hold domes in place or for building custom spacers
Uv-resistant
Not messy
Easily die cuttable
Excellent for graphic overlays and keypads
Heavy 94 polycoated kraft (pck) liner delivers improved handling and lay-flat
Adhesive resists oozing at slits and die-cuts for faster part processing
Liner adds dimensional stability for high-speed rotary die-cutting
2 mil 3M acrylic adhesive 200mp delivers excellent shear strength, resists slippage and edge lifting
Clear 1 mil polyester film carrier adds brightness, eliminating need for floodcoat

UL 746C

3M Membrane Switch Spacer Single Coated 7993MP features 3M High Performance Acrylic Adhesive 200MP, formulated for excellent shear strength, on a 1 mil carrier. This clear PET film provides a smooth, bright appearance, eliminating the need for floodcoat on overlays and keypads. The adhesive withstands repeated switch actuation and forms neat, clean edges for precise slitting and die-cutting.

Catalog

Specification Sheet

Manufacturer Name: 3M

Adhesion Strength: 68 in-oz

Adhesive Material: 200MP Acrylic

Backing Material: Polyester Film

Color: Clear

Country of Origin: US

Length: 36 in

Manufacturer Name: 3M

Maximum Operating Temperature: 400 deg F

Minimum Operating Temperature: -40 deg F

Specifications Met: ASTM D3330/D3654/D2370

Tensile Strength: 3609 psi

Thickness: 9.7 mil

Type: Single Coated

Width: 24 in

Easy to die cut and process
Use for steel rule die cutting and kiss cutting
Use to protect leads, hold domes in place or for building custom spacers
Uv-resistant
Not messy
Easily die cuttable
Excellent for graphic overlays and keypads
Heavy 94 polycoated kraft (pck) liner delivers improved handling and lay-flat
Adhesive resists oozing at slits and die-cuts for faster part processing
Liner adds dimensional stability for high-speed rotary die-cutting
2 mil 3M acrylic adhesive 200mp delivers excellent shear strength, resists slippage and edge lifting
Clear 1 mil polyester film carrier adds brightness, eliminating need for floodcoat

UL 746C

3M Membrane Switch Spacer Single Coated 7993MP features 3M High Performance Acrylic Adhesive 200MP, formulated for excellent shear strength, on a 1 mil carrier. This clear PET film provides a smooth, bright appearance, eliminating the need for floodcoat on overlays and keypads. The adhesive withstands repeated switch actuation and forms neat, clean edges for precise slitting and die-cutting.
