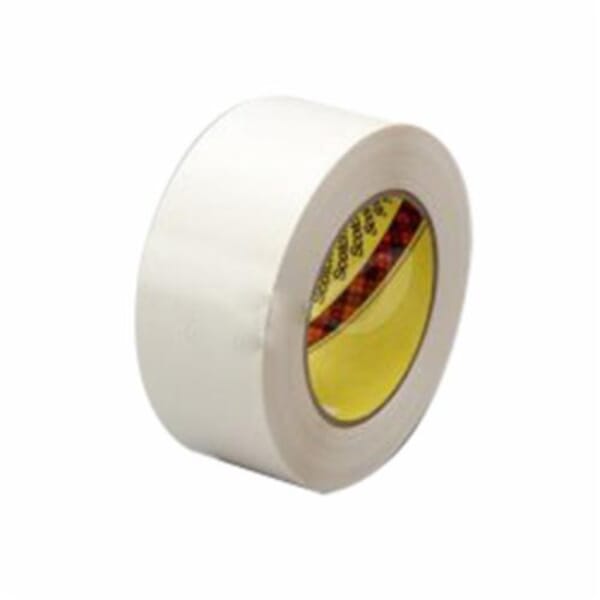

3M 7010311897 5414 Water-Soluble Tape, 36 yd L 2 in W, 2.5 mil THK, Paper Backing

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

3M

3M 7010311897 5414 Water-Soluble Tape, 36 yd L 2 in W, 2.5 mil THK, Paper Backing

Manufacturer3M

Part #120039675

MFG #7010311897

3M, 7010311897, Tape, Water-Soluble, Series: 5414, 36 yd Length, 2 in Width, 2.5 mil Thickness, Transparent, 51 mm Diameter Core, Paper Backing

$212.65

/ RL

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: 3M

Adhesion Strength: 4 in-oz

Adhesive Material: Water Soluble Synthetic

Backing Material: Paper, Polyvinyl Alcohol Film

Color: Hazy Transparent, Transparent

Core Diameter: 51 mm

Country of Origin: US

Length: 36 yd

Manufacturer Name: 3M

Maximum Operating Temperature: 464 deg F

Minimum Operating Temperature: -40 deg F

Series: 5414

Specifications Met: ASTM D3330/D3759/D3652

Tensile Strength: 6 in-lb

Thickness: 2.1 mil, 2.5 mil

Type: Water-Soluble

Width: 2 in

No adhesive residue after removal
Moisture barrier packaging plus desiccant
Available on cardboard or polyethyelene core
Humidity extremes do not affect tape properties

ASTM D3330|ASTM D3759|ASTM D3652

3M Water-Soluble Wave Solder Tape 5414 has a poly-vinyl alcohol (PVA) backing which is water soluble and a synthetic water soluble adhesive to mask gold fingers on printed cirucit boards during wave soldering. Transparent

SDS

Specification Sheet

Manufacturer Name: 3M

Adhesion Strength: 4 in-oz

Adhesive Material: Water Soluble Synthetic

Backing Material: Paper, Polyvinyl Alcohol Film

Color: Hazy Transparent, Transparent

Core Diameter: 51 mm

Country of Origin: US

Length: 36 yd

Manufacturer Name: 3M

Maximum Operating Temperature: 464 deg F

Minimum Operating Temperature: -40 deg F

Series: 5414

Specifications Met: ASTM D3330/D3759/D3652

Tensile Strength: 6 in-lb

Thickness: 2.1 mil, 2.5 mil

Type: Water-Soluble

Width: 2 in

No adhesive residue after removal
Moisture barrier packaging plus desiccant
Available on cardboard or polyethyelene core
Humidity extremes do not affect tape properties

ASTM D3330|ASTM D3759|ASTM D3652

3M Water-Soluble Wave Solder Tape 5414 has a poly-vinyl alcohol (PVA) backing which is water soluble and a synthetic water soluble adhesive to mask gold fingers on printed cirucit boards during wave soldering. Transparent

SDS

Specification Sheet
