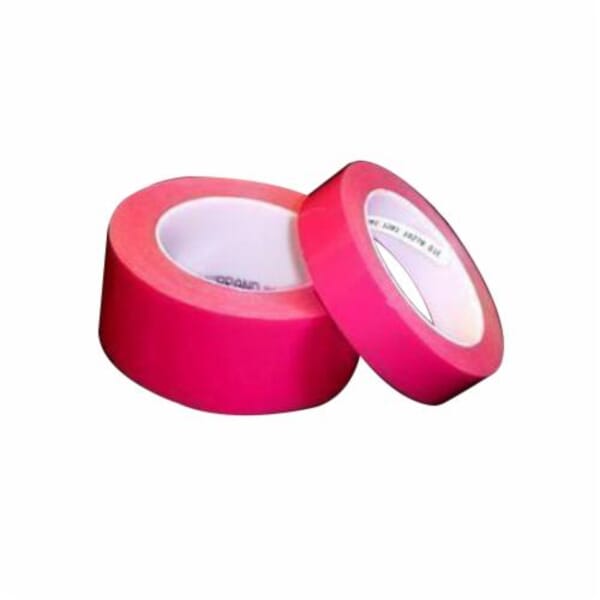

3M 7010045078 1280 Circuit Plating Tape, 72 yd L 0.5 in W, 3.6 mil THK, Polyester Backing, Red

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

3M 7010045078 1280 Circuit Plating Tape, 72 yd L 0.5 in W, 3.6 mil THK, Polyester Backing, Red

Manufacturer3M

Part #120011273

MFG #7010045078

3M, 7010045078, Tape, Circuit Plating, Series: 1280, 72 yd Length, 0.5 in Width, 3.6 mil Thickness, Red, 1/2 in Diameter Core, Polyester Backing

$17.58

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: 3M

Adhesion Strength: 30 in-oz

Adhesive Material: Rubber/Silicon Blend

Backing Material: Polyester

Color: Red

Core Diameter: 1/2 in

Country of Origin: MX

Length: 72 yd

Manufacturer Name: 3M

Maximum Operating Temperature: 311 deg F

Minimum Operating Temperature: -40 deg F

Series: 1280

Specifications Met: ASTM D3330/D3759/D3652

Tensile Strength: 30 in-lb

Thickness: 3.6 mil

Type: Circuit Plating

Width: 0.5 in, 1/2 in

Thick adhesive coating reduces undercutting because adhesive helps block out solutions between fingers
Polyethylene tape core instead of cardboard
Polyester backing reduces stretch and recovery of tape and associated uneven stop-off line
Solvent clean up of the board is recommended to facilitate subsequent soldering

3M Circuit Plating Tape 1280 with polyester film used for PCB masking tape or other high temperature applications. Red. 3.6 mil thick.

IEC 61249-2-21

Specification Sheet

Manufacturer Name: 3M

Adhesion Strength: 30 in-oz

Adhesive Material: Rubber/Silicon Blend

Backing Material: Polyester

Color: Red

Core Diameter: 1/2 in

Country of Origin: MX

Length: 72 yd

Manufacturer Name: 3M

Maximum Operating Temperature: 311 deg F

Minimum Operating Temperature: -40 deg F

Series: 1280

Specifications Met: ASTM D3330/D3759/D3652

Tensile Strength: 30 in-lb

Thickness: 3.6 mil

Type: Circuit Plating

Width: 0.5 in, 1/2 in

Thick adhesive coating reduces undercutting because adhesive helps block out solutions between fingers
Polyethylene tape core instead of cardboard
Polyester backing reduces stretch and recovery of tape and associated uneven stop-off line
Solvent clean up of the board is recommended to facilitate subsequent soldering

3M Circuit Plating Tape 1280 with polyester film used for PCB masking tape or other high temperature applications. Red. 3.6 mil thick.

IEC 61249-2-21

Specification Sheet
