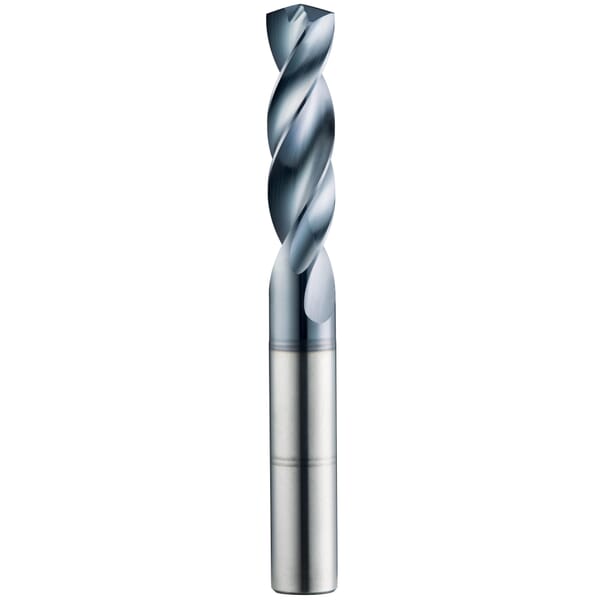

SGS 64136 HI-PERCARB 135L High Performance Double Margin Drill, 6.4 mm Drill - Metric, 0.252 in Drill - Decimal Inch, Straight Shank, 5XD Cutting, 2 Flutes

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

KYOCERA SGS Precision tools, Inc.

SGS 64136 HI-PERCARB 135L High Performance Double Margin Drill, 6.4 mm Drill - Metric, 0.252 in Drill - Decimal Inch, Straight Shank, 5XD Cutting, 2 Flutes

ManufacturerSGS

Part #069964136

MFG #64136

UPC #691781641362

SGS Double Margin Drill, High Performance, Series: HI-PERCARB 135L, 6.4 mm Drill Size - Metric, 0.252 in Drill Size - Decimal Inch, 91 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 53 mm Flute Length, 8 mm Dia x 36 mm L Shank, Straight Shank, 145 deg Point, Notched Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, AlTiN Coated, Applicable Materials: Cast Iron, High Temperature Alloy, Steel, Stainless Steel, Titanium, Non-Ferrous and Hardened Steel

$135.85

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: KYOCERA SGS Precision tools, Inc.

Applicable Materials: Cast Iron, High Temperature Alloy, Steel, Stainless Steel, Titanium, Non-Ferrous and Hardened Steel

Country of Origin: US

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Size - Decimal Inch: 0.252 in

Drill Size - Metric: 6.4 mm

Finish: AlTiN Coated

Flute Length: 53 mm

Flute Type: Right Spiral

Manufacturer Name: KYOCERA Precision Tools, KYOCERA SGS Precision tools, Inc.

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 91 mm

Point Angle: 145 deg

Point Type: Notched

Series: HI-PERCARB 135L

Shank Size: 8 mm Dia x 36 mm L

Shank Type: Straight

Type: High Performance

High performance flute design efficiently transports chips
Ti-NAMITE-A coating improves resistance to heat and wear and enhances tool life
Double margin design improves accuracy and surface finish
Increases stability and rigidity
Secondary flute improves coolant flow to the point
Reduces friction along drill body
Assists in fine swarf evacuation
Improves chip control
Decreases drill thrust and deflection
Reduces edge fatigue and allows increased feed rates
Recommended for materials 50 HRc (475 Bhn)
4-margin design improves accuracy and surface finish along with increased strength for aggressive drilling
Specialized self-centering notched point eliminates the need for spot drilling decreasing thrust and deflection
Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates

Key features designed into the HI-PERCARB 135 drill allow the product to offer application benefits not only beyond that of standard carbide drills but also other high performance drills. Each feature of the HI-PERCARB was engineered as a solution towards addressing the issues commonly encountered during high production drilling.

ISO 9001 Certified
