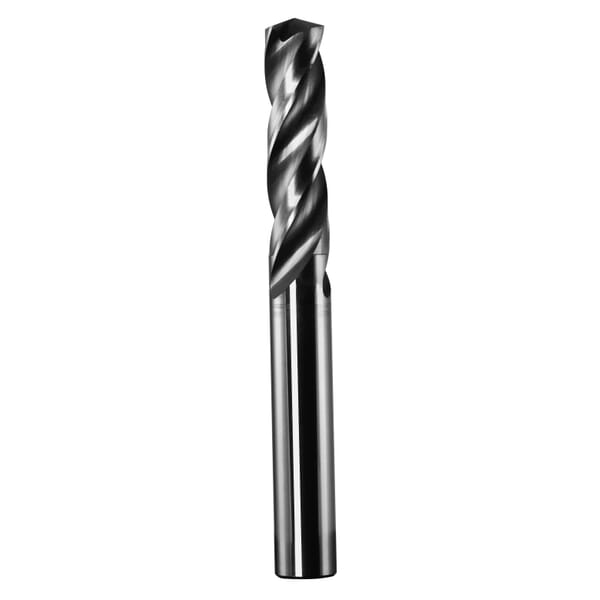

SGS 63003 103M General Purpose Regular Length Screw Machine Drill, 3.7 mm Drill - Metric, 0.1457 in Drill - Decimal Inch, Micrograin Solid Carbide, Uncoated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

KYOCERA SGS Precision tools, Inc.

SGS 63003 103M General Purpose Regular Length Screw Machine Drill, 3.7 mm Drill - Metric, 0.1457 in Drill - Decimal Inch, Micrograin Solid Carbide, Uncoated

ManufacturerSGS

Part #069963003

MFG #63003

UPC #691781630038

SGS Screw Machine Drill, General Purpose Regular Length, Series: 103M, Metric/Imperial, 3.7 mm Drill - Metric, 0.1457 in Drill - Decimal Inch, 52 mm Overall Length, 3XD Cutting Depth, 3 Flutes, Spiral Flute, 20 mm Flute Length, 3.7 mm Shank, Straight Shank, 150 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, Micrograin Solid Carbide Cutting Edge, Micrograin Solid Carbide, Uncoated, Applicable Materials: Alloy Steel, Cast Iron, High Silicon Aluminum and Non-Ferrous Materials

$33.52

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: KYOCERA SGS Precision tools, Inc.
Applicable Materials: Alloy Steel, Cast Iron, High Silicon Aluminum and Non-Ferrous Materials
Country of Origin: US
Cutting Depth: 3XD
Cutting Direction: Right Hand
Cutting Edge Material: Micrograin Solid Carbide
Drill Diameter Measurement System: Metric/Imperial
Drill Size - Decimal Inch: 0.1457 in
Drill Size - Metric: 3.7 mm
Finish: Uncoated
Flute Length: 20 mm
Flute Type: Spiral
Manufacturer Name: KYOCERA Precision Tools, KYOCERA SGS Precision tools, Inc.
Material: Micrograin Solid Carbide
Number of Flutes: 3
Overall Length: 52 mm
Point Angle: 150 deg
Point Type: Split/Self-Centering
Series: 103M
Shank Size: 3.7 mm
Shank Type: Straight
Type: General Purpose Regular Length
: DIN 6539
: SGS Screw Machine Drill, General Purpose Regular Length, Series: 103M, Metric/Imperial, 3.7 mm Drill - Metric, 0.1457 in Drill - Decimal Inch, 52 mm Overall Length, 3XD Cutting Depth, 3 Flutes, Spiral Flute, 20 mm Flute Length, 3.7 mm Shank, Straight Shank, 150 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, Micrograin Solid Carbide Cutting Edge, Micrograin Solid Carbide, Uncoated, Applicable Materials: Alloy Steel, Cast Iron, High Silicon Aluminum and Non-Ferrous Materials
