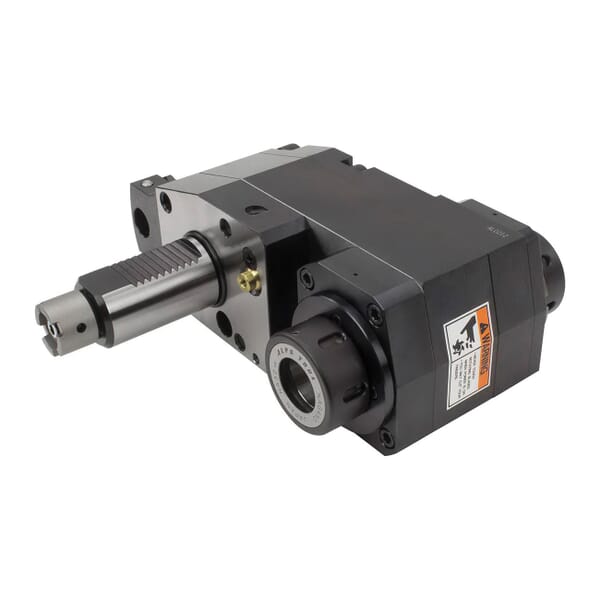

Lyndex-Nikken OKL3-ER32Z-OFMS Okuma OKL3 Z-Axis Face Drill/Milling Unit, ER32 Workpiece Side
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsLyndex-Nikken OKL3-ER32Z-OFMS Okuma OKL3 Z-Axis Face Drill/Milling Unit, ER32 Workpiece Side
ManufacturerLyndex-Nikken
Part #048329023
MFG #OKL3-ER32Z-OFMS
Lyndex-Nikken Face Drill/Milling Unit, Z-Axis, Series: Okuma OKL3, ER32 System Size Workpiece Side, Nickel Chrome Molybdenum Alloy
$10,601.33
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Lyndex-NikkenCountry of Origin:Â JPManufacturer Name:Â Lyndex-NikkenMaterial:Â Nickel Chrome Molybdenum AlloySeries:Â Okuma OKL3System Size Workpiece Side:Â ER32Type:Â Z-Axis
- Labyrinth seals - provide a high pressure multi-barrier construction that prevents contaminants and coolant from entering the main chamber
- Ground eccentric nut - allows for fine accuracy and strong tool shank gripping capacity by preventing collet twisting or rocking
- Run out - guarantee of under 5 u repeatability at collet nose
- Gear pairing - hand matched for each pair to minimize backlash
- Gear design - custom ground spiral bevel gear tooth design maximizes drive torque output and reduces tooth root stress allowing for more tool longevity
- Gear equilibrium - placement of bearings balance torque stress evenly through input/output shafts
- Tool body - manufactured from the highest tensile and compression nickel chrome molybdenum alloys
- Drive shafts - all features are ground on both the input and output chrome molybdenum drive shafts to assure proper torque transmission and precision concentricity
- Bearing quality - only the highest precision ABEC 7 angular contact bearings are used for smooth and high speed rotation
- Quality control - all live tools go through a vigorous 60-point final inspection to satisfy the highest expectations of live tool performance
- With external coolant
- Metal Working Applications
- Manufacturer Name:Â Lyndex-NikkenCountry of Origin:Â JPManufacturer Name:Â Lyndex-NikkenMaterial:Â Nickel Chrome Molybdenum AlloySeries:Â Okuma OKL3System Size Workpiece Side:Â ER32Type:Â Z-Axis
- Labyrinth seals - provide a high pressure multi-barrier construction that prevents contaminants and coolant from entering the main chamber
- Ground eccentric nut - allows for fine accuracy and strong tool shank gripping capacity by preventing collet twisting or rocking
- Run out - guarantee of under 5 u repeatability at collet nose
- Gear pairing - hand matched for each pair to minimize backlash
- Gear design - custom ground spiral bevel gear tooth design maximizes drive torque output and reduces tooth root stress allowing for more tool longevity
- Gear equilibrium - placement of bearings balance torque stress evenly through input/output shafts
- Tool body - manufactured from the highest tensile and compression nickel chrome molybdenum alloys
- Drive shafts - all features are ground on both the input and output chrome molybdenum drive shafts to assure proper torque transmission and precision concentricity
- Bearing quality - only the highest precision ABEC 7 angular contact bearings are used for smooth and high speed rotation
- Quality control - all live tools go through a vigorous 60-point final inspection to satisfy the highest expectations of live tool performance
- With external coolant
- Metal Working Applications
