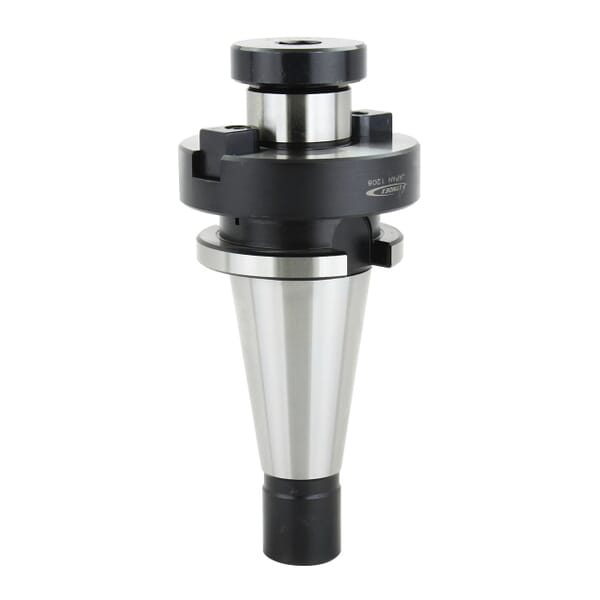

Lyndex-Nikken N3001-1000-1.31 Shell Mill Holder, 1/2-20 Dia Hole, NMTB Taper Shank, NMTB30 Taper, 1 in Dia Nose, 1.31 in Projection

ManufacturerLyndex-Nikken

Part #048328483

MFG #N3001-1000-1.31

Lyndex-Nikken Shell Mill Holder, Series: N3001, 1/2-20 Hole Dia, NMTB Taper Shank, NMTB30 Taper, 1 in Nose Dia, 1.31 in Projection, 2.382 in Overall Dia, NMTB30 Shank Connection, System Size Machine Side: NMTB30

$156.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Lyndex-Nikken

Country of Origin: JP

Hole Diameter: 1/2-20

Manufacturer Name: Lyndex-Nikken

Nose Diameter: 1 in

Overall Diameter: 2.382 in

Projection: 1.31 in

Series: N3001

Shank Connection Size: NMTB30

Shank Type: NMTB Taper

System Size Machine Side: NMTB30

Taper Size: NMTB30

Taper ground to AT3 or better to ensure 80% taper contact
H6 precision ground pilot for concentric and repeatable mounting of shell mill
Surface ground to maintain 0.0002 in perpendicularity to centerline ensuring flat engagement of shell mill
Nickel chrome molybdenum alloy body
Keys included as standard for quick set-up
Heat treated carbon steel nut prevents wear and increases clamping pressure
Accommodates face mills with bore diameters ranging from 1/2 to 2 in
Pilot diameter sized for precision fit with cutter
Removable/replaceable drive keys as standard
AT3 or better taper
Up to 30000 rpm speed
TIR Less than 0.00015 in run out along pilot
Quick and easy set-up

Fine Thread Locking Screw

Metal Working Applications

Fine Thread Locking Screw
