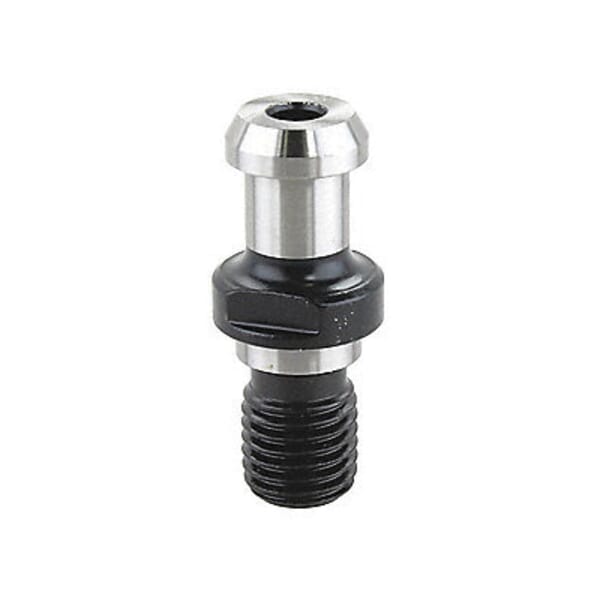

Lyndex-Nikken B40-FADAL ANSI Style Retention Knob/Pull Stud, M16 P-2 Thread, 45 deg, 0.74 in Dia Knob, BT40 Taper, 1.62 in OAL

ManufacturerLyndex-Nikken

Part #048326333

MFG #B40-FADAL

Lyndex-Nikken Retention Knob/Pull Stud, ANSI Style, M16 P-2, 45 deg, 0.74 in Knob Dia, BT40 Taper, 0.49 in Neck Dia, 1.62 in Overall Length, 0.236 in Flange Thickness, 0.552 in Flange to Angle Length, 3/4 in Flange to Knob Length, No Through Coolant (Yes/No)

$34.67

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Lyndex-Nikken

Angle: 45 deg

Country of Origin: JP

Flange Thickness: 0.236 in

Flange to Angle Length: 0.552 in

Flange to Knob Length: 3/4 in

Knob Diameter: 0.74 in

Manufacturer Name: Lyndex-Nikken

Neck Diameter: 0.49 in

Overall Length: 1.62 in

Taper Size: BT40

Thread Size: M16 P-2

Through Coolant (Yes/No): No

Type: ANSI Style

Class 4g 6g metric thread
Magnetic particle crack tested
Tensile and shear requirements per JIS 6339
All locations of the pullstud that make contact with ground spindle mechanism components are ground
Base of pullstud flange is ground to assure perpendicular alignment between pullstud and taper of toolholder
Ground pilot and tight pitch diameter tolerance help maintain accurate concentricity between threads and knob limiting the expansion or flaring of the small end of the taper
