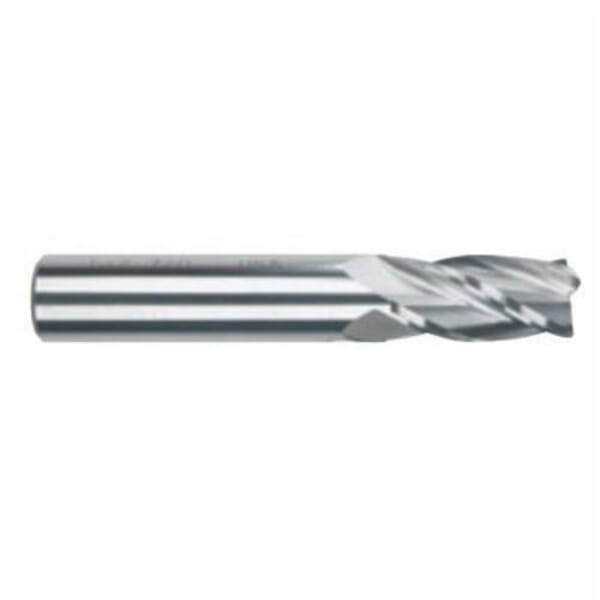

MORSE 95097 5968T Center Cutting Regular Length Single End End Mill, 1 in Dia Cutter, 1-1/2 in Length of Cut, 4 Flutes, 1 in Dia Shank, 4 in OAL, TiAlN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Morse Cutting Tools

MORSE 95097 5968T Center Cutting Regular Length Single End End Mill, 1 in Dia Cutter, 1-1/2 in Length of Cut, 4 Flutes, 1 in Dia Shank, 4 in OAL, TiAlN Coated

ManufacturerMORSE

Part #044495097

MFG #95097

UPC #686125950972

MORSE End Mill, Center Cutting Regular Length Single End, Series: 5968T, 1 in Diameter Cutter, 4 in Overall Length, 1-1/2 in Length of Cut, 4 Flutes, Spiral Flute, 1 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Plain/Round Shank, Solid Micrograin Carbide, TiAlN Coated

$341.77

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Morse Cutting Tools

Country of Origin: US

Cutter Diameter: 1 in

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 30 deg

Length of Cut: 1-1/2 in

Manufacturer Name: Morse Cutting Tools

Material: Solid Micrograin Carbide

Number of Flutes: 4

Overall Length: 4 in

Series: 5968T

Shank Diameter: 1 in

Shank Type: Plain/Round

Type: Center Cutting Regular Length Single End

Corner radius strengthens the end mill corners to minimize chipping especially in tougher milling applications
Corner radius also used when the finished part requires a radius
Greater core thickness offer increased tool strength and reduced tool defection
Reduce chip load per tooth for the milling of tougher materials, greater wear resistance and improved surface finish
Solid carbide offers higher cutting speeds, high rigidity, excellent hardness, wear resistance and heat resistance and long tool life
Tool coatings further enhance milling performance
0.06 in corner radius

ISO 9001:2008

Catalog

Manufacturer Name: Morse Cutting Tools

Country of Origin: US

Cutter Diameter: 1 in

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 30 deg

Length of Cut: 1-1/2 in

Manufacturer Name: Morse Cutting Tools

Material: Solid Micrograin Carbide

Number of Flutes: 4

Overall Length: 4 in

Series: 5968T

Shank Diameter: 1 in

Shank Type: Plain/Round

Type: Center Cutting Regular Length Single End

Corner radius strengthens the end mill corners to minimize chipping especially in tougher milling applications
Corner radius also used when the finished part requires a radius
Greater core thickness offer increased tool strength and reduced tool defection
Reduce chip load per tooth for the milling of tougher materials, greater wear resistance and improved surface finish
Solid carbide offers higher cutting speeds, high rigidity, excellent hardness, wear resistance and heat resistance and long tool life
Tool coatings further enhance milling performance
0.06 in corner radius

ISO 9001:2008

Catalog
