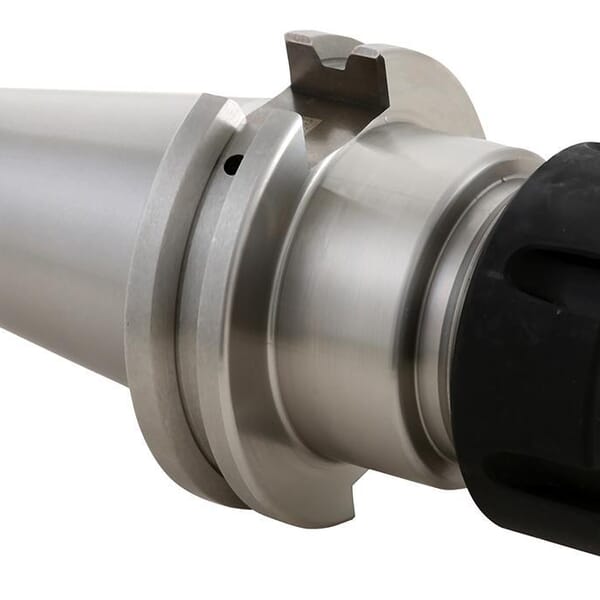

TECHNIKS 22255 Single End V-Flange Collet Chuck, Tapered Shank, ER32 Collet System, ER32 Chuck

ManufacturerTECHNIKS

Part #143322255

MFG #22255

TECHNIKS Collet Chuck, Single End V-Flange, 6.68 in Overall Length, 3.87 in Shank Length, 1.969 in Diameter Nose, 4 in Head Length/Projection, ER32 Collet System, Tapered Shank, ER32 Chuck, CAT40 Taper, 1.97 in Diameter Collet Nut, Yes Through Coolant (Yes/No)

$191.58

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Techniks Tool Group

Chuck Size: ER32

Collet Nut Diameter: 1.97 in

Collet System: ER32

Country of Origin: TW

Head Length/Projection: 4 in

Manufacturer Name: TECHNIKS INDUSTRIES, Techniks Tool Group

Nose Diameter: 1.969 in

Overall Length: 6.68 in

Shank Length: 3.87 in

Shank Type: Tapered

Taper Size: CAT40

Through Coolant (Yes/No): Yes

Type: Single End V-Flange

Collet chucks are balanced to 25000 rpm at G2.5 tolerance
They are individually lab tested for accuracy and balance and come with their individual performance report
Holders achieve 0.0001 in or less T.I.R as measured from the taper to the collet pocket
PowerCOAT nut included for 75% more clamping power

PowerCOAT Slotted Nut

For drilling, milling and high speed applications
