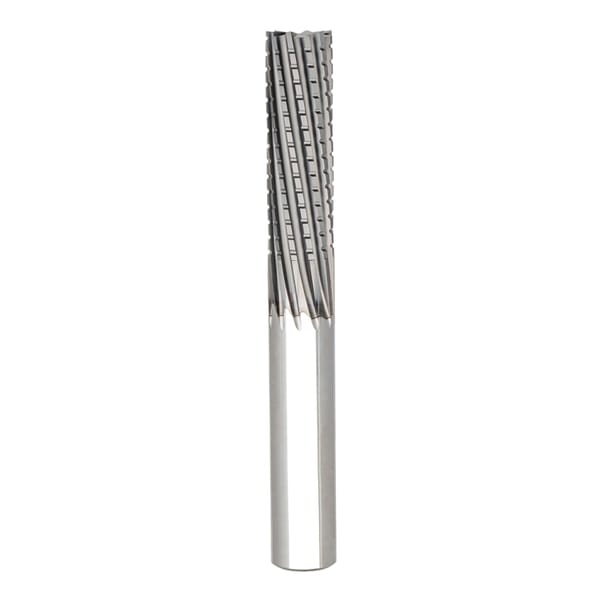

JABRO 03135013 JC877 Burr Style Chamfer Square End End Mill, 3 mm Dia Cutter, 9 mm Length of Cut, 6 Flutes, 3 mm Dia Shank, 50 mm OAL, DURA CVD Coated
Product Line: JABRO
MFG #: 03135013
Your Price
JABRO 03135013 JC877 Burr Style Chamfer Square End End Mill, 3 mm Dia Cutter, 9 mm Length of Cut, 6 Flutes, 3 mm Dia Shank, 50 mm OAL, DURA CVD Coated
Description
JABRO End Mill, Burr Style Chamfer Square End, Series: JC877, 3 mm Diameter Cutter, 50 mm Overall Length, 9 mm Length of Cut, 6 Flutes, Spiral Flute, 3 mm Shank Diameter, Right Hand Cutting Direction, -10 deg Helix Angle, Cylindrical Shank, ANSI Code: JC877030D2C.0Z6-DURA, ISO Code: JC877030D2C.0Z6-DURA, Solid Carbide, DURA CVD Coated
Product Number: 288535013
Manufacturer: JABRO
Prasdsadice:
MFG #: 03135013
Manufacturer: Seco Tools
Specifications
ANSI Code: JC877030D2C.0Z6-DURA
Country of Origin: US
Cutter Diameter: 3 mm
Cutting Direction: Right Hand
Finish: DURA CVD Coated
Flute Type: Spiral
Helix Angle: -10 deg
ISO Code: JC877030D2C.0Z6-DURA
Length of Cut: 9 mm
Manufacturer Name: Seco Tools
Material: Solid Carbide
Number of Flutes: 6
Overall Length: 50 mm
Series: JC877
Shank Diameter: 3 mm
Shank Type: Cylindrical
Type: Burr Style Chamfer Square End
Item Features
- Downcut and short sweep out
