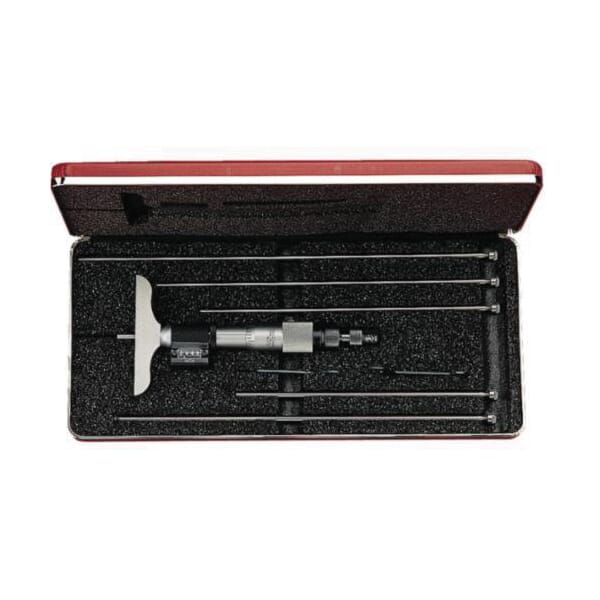

Starrett 446AZ-6RL Digital Mechanical Depth Micrometer, 0 to 6 in, Graduations: 0.001 in, Black
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsStarrett 446AZ-6RL Digital Mechanical Depth Micrometer, 0 to 6 in, Graduations: 0.001 in, Black
ManufacturerStarrett
Part #530456289
MFG #749.1BZ-6RL
UPC #049659562897
Starrett Depth Micrometer, Digital Mechanical, Series: 446, 0 to 6 in, +/-0.0001 in Mic Head, +/-0.0002 in Rods Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Flat Anvil, Flat Spindle, Ratchet Thimble, Black, 23/32 THK
$997.81
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â L.S. StarrettAccuracy:Â +/-0.0001 in Mic Head, +/-0.0002 in RodsAnvil Type:Â FlatCountry of Origin:Â USDimensions:Â 23/32 THKFinish:Â BlackGraduations:Â 0.001 inManufacturer Name:Â L.S. StarrettMeasuring Range:Â 0 to 6 inResolution:Â 0.001 inSeries:Â 446Spindle Type:Â FlatThimble Type:Â RatchetType:Â Digital Mechanical
- Clear, easily read white numbers on black background reduce errors
- No-glare black finish on the frame
- Measurement is read directly from the counter
- Ring-type knurled lock nut for quick and sure locking
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Hardened, ground and lapped base is 3 in (75 mm) long
- Measuring rods are 5/32 in (4 mm) diameter and are adjustable
- Window, English, Adjusting Shell, Screw Spindle, Shell, English, Shell Cap, 0.375-52 Nut, Binder Ring, 0.089 X 0.107 X 0.062 X 0.009 X 2 Spring, DIG MIC Lock Pin, Counter Assembly-ENG., 0.052-80 Slot X 0.173 Long Screw, 0.052-80 Slot X 0.111 Long Screw, 1/16-64 Slot X 0.041 Long Screw, Barrel Spring, #3 Wrench, Ratchet assembly, Cap Assembly, #446 Ratchet Body, 0.066D X 0.156L Ratchet Pin, 0.041 X 0.061 X 0.188 X 0.010 X 6 Spring, #2-64 Slot X 0.204 Long Screw, 0-1in Rod Assembly, 1-2in Rod Assembly, 2-3in Rod Assembly, 3-4in Rod Assembly, 4-5in Rod Assembly, 5-6 in Rod Assembly, 0.125-40 Replacement Nut and Steel/Vinyl Case Only
- PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Manufacturer Name:Â L.S. StarrettAccuracy:Â +/-0.0001 in Mic Head, +/-0.0002 in RodsAnvil Type:Â FlatCountry of Origin:Â USDimensions:Â 23/32 THKFinish:Â BlackGraduations:Â 0.001 inManufacturer Name:Â L.S. StarrettMeasuring Range:Â 0 to 6 inResolution:Â 0.001 inSeries:Â 446Spindle Type:Â FlatThimble Type:Â RatchetType:Â Digital Mechanical
- Clear, easily read white numbers on black background reduce errors
- No-glare black finish on the frame
- Measurement is read directly from the counter
- Ring-type knurled lock nut for quick and sure locking
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Hardened, ground and lapped base is 3 in (75 mm) long
- Measuring rods are 5/32 in (4 mm) diameter and are adjustable
- Window, English, Adjusting Shell, Screw Spindle, Shell, English, Shell Cap, 0.375-52 Nut, Binder Ring, 0.089 X 0.107 X 0.062 X 0.009 X 2 Spring, DIG MIC Lock Pin, Counter Assembly-ENG., 0.052-80 Slot X 0.173 Long Screw, 0.052-80 Slot X 0.111 Long Screw, 1/16-64 Slot X 0.041 Long Screw, Barrel Spring, #3 Wrench, Ratchet assembly, Cap Assembly, #446 Ratchet Body, 0.066D X 0.156L Ratchet Pin, 0.041 X 0.061 X 0.188 X 0.010 X 6 Spring, #2-64 Slot X 0.204 Long Screw, 0-1in Rod Assembly, 1-2in Rod Assembly, 2-3in Rod Assembly, 3-4in Rod Assembly, 4-5in Rod Assembly, 5-6 in Rod Assembly, 0.125-40 Replacement Nut and Steel/Vinyl Case Only
- PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
