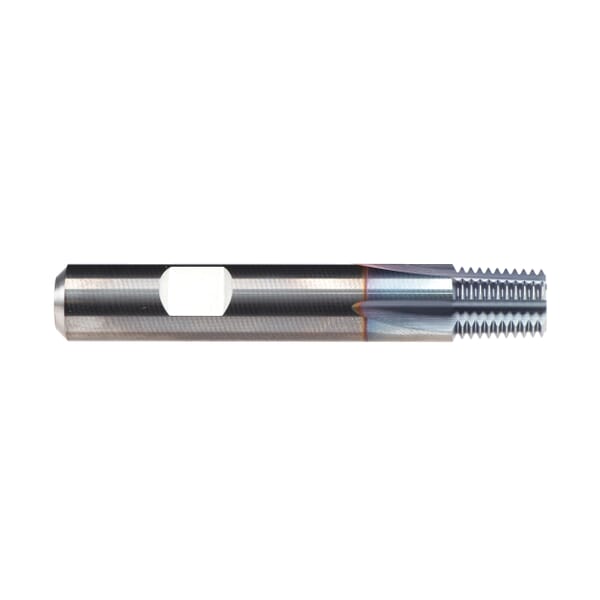

Emuge-Franken SHUR-THREAD | SHUR-THREAD GF173116.4116 GF Style Straight Flute Thread Mill With Axial Through Coolant, 1/4-19 Rc (BSPT) Thread, 75 mm OAL, 4 Flutes, 12 mm Dia Shank

SHUR-THREAD GF173116.4116 GF Style Straight Flute Thread Mill With Axial Through Coolant, 1/4-19 Rc (BSPT) Thread, 75 mm OAL, 4 Flutes, 12 mm Dia Shank

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

SHUR-THREAD GF173116.4116 GF Style Straight Flute Thread Mill With Axial Through Coolant, 1/4-19 Rc (BSPT) Thread, 75 mm OAL, 4 Flutes, 12 mm Dia Shank

ManufacturerSHUR-THREAD

Part #826505613

MFG #GF173116.4116

SHUR-THREAD Straight Flute Thread Mill, GF Style, Series: GF173116, 1/4-19 Thread, Rc (BSPT) Thread, 10.15 mm Diameter Cutting, 13.96 mm Length of Cut, 75 mm Overall Length, 4 Flutes, Weldon Flat Shank, 12 mm Shank Diameter, 1.772 in Shank Length, Carbide, Bright

$555.10

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 10.15 mm

Finish: Bright

Length of Cut: 13.96 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 4

Overall Length: 75 mm

Series: GF173116

Shank Diameter: 12 mm

Shank Length: 1.772 in

Shank Type: Weldon Flat

Thread Size: 1/4-19

Thread Type: Rc (BSPT)

Type: GF Style

GF-KEG tapered thread mill designed for internal Rc (BSPT) pipe threads
Tapered whitworth pipe thread per DIN EN ISO 10266-2 and ISO 7-1
Thread taper 1:16
IKZ - axial coolant fed for efficient chip evacuation
Bright finished or TiCN coated option for wear resistance and additional tool life

SHUR-THREAD Straight Flute Thread Mill, GF Style, Series: GF173116, 1/4-19 Thread, Rc (BSPT) Thread, 10.15 mm Diameter Cutting, 13.96 mm Length of Cut, 75 mm Overall Length, 4 Flutes, Weldon Flat Shank, 12 mm Shank Diameter, 1.772 in Shank Length, Carbide, Bright

DIN EN ISO 10266-2|ISO 7-1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 10.15 mm

Finish: Bright

Length of Cut: 13.96 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 4

Overall Length: 75 mm

Series: GF173116

Shank Diameter: 12 mm

Shank Length: 1.772 in

Shank Type: Weldon Flat

Thread Size: 1/4-19

Thread Type: Rc (BSPT)

Type: GF Style

GF-KEG tapered thread mill designed for internal Rc (BSPT) pipe threads
Tapered whitworth pipe thread per DIN EN ISO 10266-2 and ISO 7-1
Thread taper 1:16
IKZ - axial coolant fed for efficient chip evacuation
Bright finished or TiCN coated option for wear resistance and additional tool life

SHUR-THREAD Straight Flute Thread Mill, GF Style, Series: GF173116, 1/4-19 Thread, Rc (BSPT) Thread, 10.15 mm Diameter Cutting, 13.96 mm Length of Cut, 75 mm Overall Length, 4 Flutes, Weldon Flat Shank, 12 mm Shank Diameter, 1.772 in Shank Length, Carbide, Bright

DIN EN ISO 10266-2|ISO 7-1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
