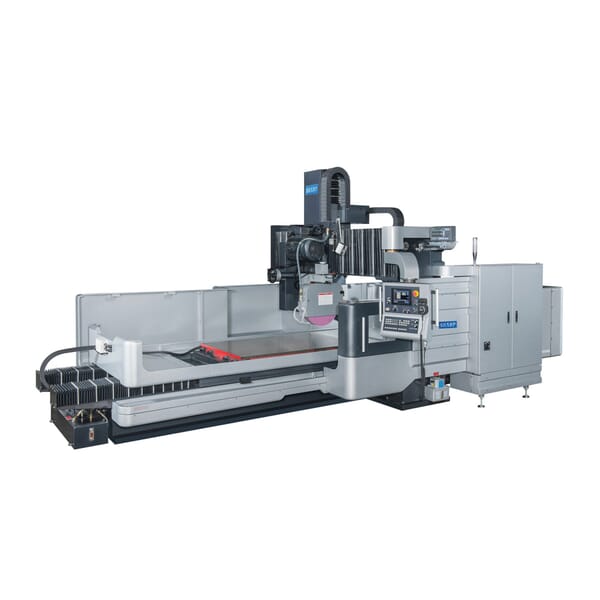

Sharp SHDC-60120 Double Column Surface Grinder With NC Servo Downfeed System, 20 in Dia x 3.94 in W Wheel, 1150 rpm Speed, 15 hp

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sharp-Industries, Inc

Sharp SHDC-60120 Double Column Surface Grinder With NC Servo Downfeed System, 20 in Dia x 3.94 in W Wheel, 1150 rpm Speed, 15 hp

ManufacturerSharp

Part #848670004

MFG #SHDC-60120

Sharp Surface Grinder, Double Column, Bare Tool/Kit: Kit, Series: SHDC Series, 20 in Wheel Diameter, 1150 rpm Speed, 3.94 in Wheel Width, 15 hp, 220 V, 27.58 x 11.5 x 12.5 ft Dimensions

$695,000.00

/ EA

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sharp-Industries, Inc

Bare Tool/Kit: Kit

Country of Origin: TW

Dimensions: 27.58 x 11.5 x 12.5 ft

Horsepower: 15 hp

Manufacturer Name: Sharp-Industries, Inc

Series: SHDC Series

Speed: 1150 rpm

Type: Double Column

Voltage Rating: 220 V

Wheel Diameter: 20 in

Wheel Width: 3.94 in

16-Spindle Speed, 2-Stage Spindle Start Up, Headstock Oil Bath System, Electro-Magnetic Brake, Lubrication System, Coolant System, Manual Tailstock, 16 in Steady Rest and Work Lamp

Work table travels on hardened and ground double V-ways
Extra long machine base ensures no overhang of work table
Two hydraulic cylinders ensures steady and smooth table travel
Grinding head travels on ball screw along the cross beam
Grinding head is supported at two levels with flat and dovetails ways
Micro adjustment of cross feed operated by manual hand wheel
Spindle down feed travels on box ways
Spindle down feed driven by servo motor with MPG control
Two axes digital readout system is standard

Ideal for large plate, die mold and ceramic plates

16-Spindle Speed, 2-Stage Spindle Start Up, Headstock Oil Bath System, Electro-Magnetic Brake, Lubrication System, Coolant System, Manual Tailstock, 16 in Steady Rest and Work Lamp

Catalog

Manufacturer Name: Sharp-Industries, Inc

Bare Tool/Kit: Kit

Country of Origin: TW

Dimensions: 27.58 x 11.5 x 12.5 ft

Horsepower: 15 hp

Manufacturer Name: Sharp-Industries, Inc

Series: SHDC Series

Speed: 1150 rpm

Type: Double Column

Voltage Rating: 220 V

Wheel Diameter: 20 in

Wheel Width: 3.94 in

16-Spindle Speed, 2-Stage Spindle Start Up, Headstock Oil Bath System, Electro-Magnetic Brake, Lubrication System, Coolant System, Manual Tailstock, 16 in Steady Rest and Work Lamp

Work table travels on hardened and ground double V-ways
Extra long machine base ensures no overhang of work table
Two hydraulic cylinders ensures steady and smooth table travel
Grinding head travels on ball screw along the cross beam
Grinding head is supported at two levels with flat and dovetails ways
Micro adjustment of cross feed operated by manual hand wheel
Spindle down feed travels on box ways
Spindle down feed driven by servo motor with MPG control
Two axes digital readout system is standard

Ideal for large plate, die mold and ceramic plates

16-Spindle Speed, 2-Stage Spindle Start Up, Headstock Oil Bath System, Electro-Magnetic Brake, Lubrication System, Coolant System, Manual Tailstock, 16 in Steady Rest and Work Lamp

Catalog
