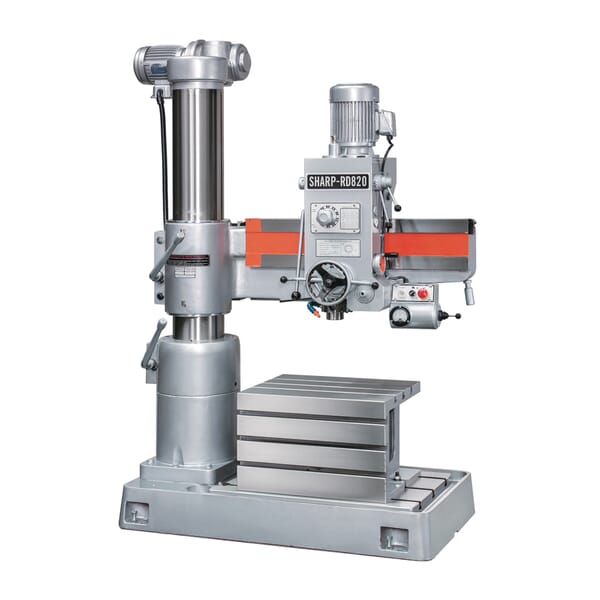

Sharp RD820 Radial Arm Drill, 3 hp, 220/440 V

ManufacturerSharp

Part #848670085

MFG #RD820

Sharp Radial Arm Drill, MT#4 Spindle Taper, 24.87 in Spindle Travel, 88 to 1500 rpm Spindle Speed, 6 Spindle Speed, 13.75 to 47.62 in Spindle to Table Distance, 8.62 to 33.5 in Spindle to Column Distance, 49.62 x 25.18 x 0.28 in Base, 8-1/4 in Diameter Column, 3 hp, 220/440 V, 15/7.5 A, 5.5 x 2.66 x 7.16 ft Dimensions

$18,580.00

/ EA

Contact Us for Ordering and Shipping information. 800-555-1212

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 15/7.5 A

Base Dimensions: 49.62 x 25.18 x 0.28 in

Column Diameter: 8-1/4 in

Country of Origin: TW

Dimensions: 5.5 x 2.66 x 7.16 ft

Horsepower: 3 hp

Manufacturer Name: Sharp-Industries, Inc

Number of Spindle Speeds: 6

Spindle Speed: 88 to 1500 rpm

Spindle Taper: MT#4

Spindle to Column Distance: 8.62 to 33.5 in

Spindle to Table Distance: 13.75 to 47.62 in

Spindle Travel: 24.87 in

Voltage Rating: 220/440 V

Manual clamping for column and arm
Auto spindle forward/reverse for tapping
Spring loaded spindle counter balance system
Dial on drill head showing spindle down feed depth
Safety device to prevent sudden drop of arm
Sliding arm designed with hardened and ground ways
Over travel protection on arm and head feed
Coolant system and box table are standard

Box Table, Coolant System and Work Light

Ideal for drilling, tapping, boring, reaming, lapping, screwing, counter boring and spot facing
