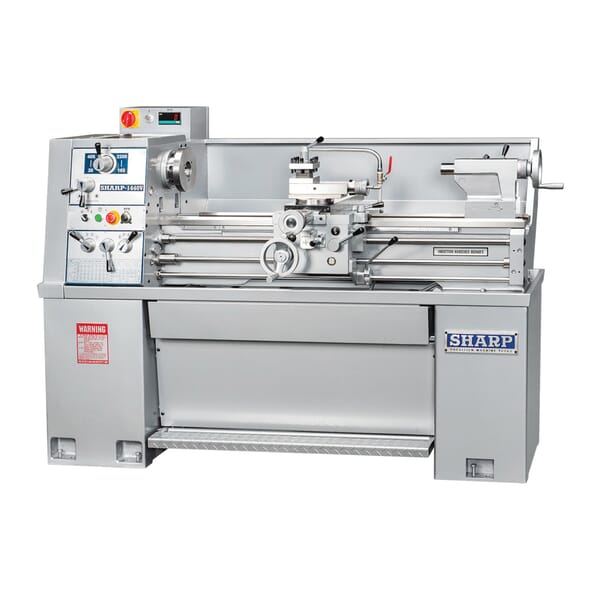

Sharp 1440V-K Manual Vari-Speed Precision Lathe, 14 in Swing Over Bed, 8.62 in Swing Over Cross Slide, 40 in Distance Between Centers, 1-1/2 in Bore Spindle, 3 hp

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sharp-Industries, Inc

Sharp 1440V-K Manual Vari-Speed Precision Lathe, 14 in Swing Over Bed, 8.62 in Swing Over Cross Slide, 40 in Distance Between Centers, 1-1/2 in Bore Spindle, 3 hp

ManufacturerSharp

Part #848670063

MFG #1440V

Sharp Precision Lathe, Manual Vari-Speed, 14 in Swing Over Bed, 8.62 in Swing Over Cross Slide, 40 in Distance Between Centers, 8.12 in Bed Width, MT #3 Tailstock Taper, 1-1/2 in Bore Spindle, D1-4 Camlock Spindle Nose, 30 to 2200 rpm Spindle Speed, 6.6 in Cross Travel, 4-1/2 in Tailstock Spindle Travel, 4 in Compound Travel, 0.0003 to 0.01 in Maximum Cross Feed Rate per Revolution, 0.0012 to 0.0294 in Maximum Longitudinal Feed Rate per Revolution, 3 hp, 220/440 V, 10/5 A, 6.29 x 2.41 x 3.91 ft Dimensions

$19,720.00

/ EA

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 10/5 A

Bed Width: 8.12 in

Compound Travel: 4 in

Country of Origin: TW

Cross Travel: 6.6 in

Dimensions: 6.29 x 2.41 x 3.91 ft

Distance Between Centers: 40 in

Horsepower: 3 hp

Manufacturer Name: Sharp-Industries, Inc

Maximum Cross Feed Rate per Revolution: 0.0003 to 0.01 in

Maximum Longitudinal Feed Rate per Revolution: 0.0012 to 0.0294 in

Spindle Nose: D1-4 Camlock

Spindle Size: 1-1/2 in Bore

Spindle Speed: 30 to 2200 rpm

Swing Over Bed: 14 in

Swing Over Cross Slide: 8.62 in

Tailstock Spindle Travel: 4-1/2 in

Tailstock Taper Size: MT #3

Type: Manual Vari-Speed

Voltage Rating: 220/440 V

3-Jaw 8 in Steady Rest Chuck, Removable Gap, Back Plate, Coolant System, 4-Way Tool Post, Full Length Splash Guard, Center Sleeves, Dead Center, Tool Kit and 220/440 V Wired

Digital variable speed
One piece bed design
Chrome-moly headstock gears
Hardened and ground bed ways
Carriage travel control at apron

3-Jaw 8 in Steady Rest Chuck, Removable Gap, Back Plate, Coolant System, 4-Way Tool Post, Full Length Splash Guard, Center Sleeves, Dead Center, Tool Kit and 220/440 V Wired

Ideal for schools, job shop, training for the next generation of skilled workers and individual home machine shops

Catalog

Owners/User Manual

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 10/5 A

Bed Width: 8.12 in

Compound Travel: 4 in

Country of Origin: TW

Cross Travel: 6.6 in

Dimensions: 6.29 x 2.41 x 3.91 ft

Distance Between Centers: 40 in

Horsepower: 3 hp

Manufacturer Name: Sharp-Industries, Inc

Maximum Cross Feed Rate per Revolution: 0.0003 to 0.01 in

Maximum Longitudinal Feed Rate per Revolution: 0.0012 to 0.0294 in

Spindle Nose: D1-4 Camlock

Spindle Size: 1-1/2 in Bore

Spindle Speed: 30 to 2200 rpm

Swing Over Bed: 14 in

Swing Over Cross Slide: 8.62 in

Tailstock Spindle Travel: 4-1/2 in

Tailstock Taper Size: MT #3

Type: Manual Vari-Speed

Voltage Rating: 220/440 V

3-Jaw 8 in Steady Rest Chuck, Removable Gap, Back Plate, Coolant System, 4-Way Tool Post, Full Length Splash Guard, Center Sleeves, Dead Center, Tool Kit and 220/440 V Wired

Digital variable speed
One piece bed design
Chrome-moly headstock gears
Hardened and ground bed ways
Carriage travel control at apron

3-Jaw 8 in Steady Rest Chuck, Removable Gap, Back Plate, Coolant System, 4-Way Tool Post, Full Length Splash Guard, Center Sleeves, Dead Center, Tool Kit and 220/440 V Wired

Ideal for schools, job shop, training for the next generation of skilled workers and individual home machine shops

Catalog

Owners/User Manual
