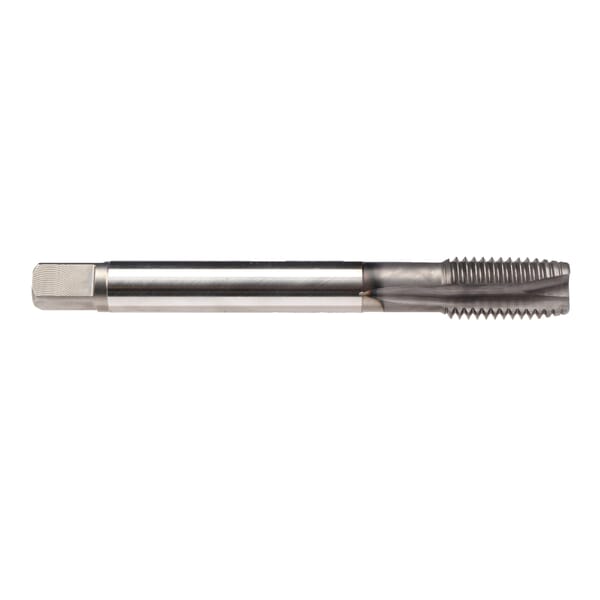

Name: Emuge C020C300.0127 Rekord 2B-VA C020C300 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, M27x3 Thread, 4-5 Plug Chamfer, 3 Flutes, GLT-1, HSS-E
Brand: Emuge-Franken
SKU: EMUGE_Q2_2019_00665
Availability: OutOfStock

Emuge-Franken

Emuge C020C300.0127 Rekord 2B-VA C020C300 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, M27x3 Thread, 4-5 Plug Chamfer, 3 Flutes, GLT-1, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge C020C300.0127 Rekord 2B-VA C020C300 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, M27x3 Thread, 4-5 Plug Chamfer, 3 Flutes, GLT-1, HSS-E

ManufacturerEmuge

Part #826513970

MFG #C020C300.0127

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-VA C020C300, Measurement System: Metric, MC, M27x3, 4-5 Plug Chamfer, 3 Flutes, HSS-E, GLT-1, Class of Fit: 6H, Right Hand Cutting, 36 mm Thread Length, 160 mm Overall Length, 20 mm Shank Dia, Cast Iron, Copper Zinc Alloys, Stainless Steel and Steel Material Application, No Through Coolant (Yes/No)

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 4-5 Plug

Class of Fit: 6H

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-1, GLT-1 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Cast Iron, Copper Zinc Alloys, Stainless Steel and Steel

Measurement System: Metric

Number of Flutes: 3

Overall Length: 160 mm

Series: Rekord 2B-VA C020C300

Shank Diameter: 20 mm

Thread Length: 36 mm

Thread Size: M27x3

Thread Standard: M, MC

Through Coolant (Yes/No): No

Type: Form B Reduced Shank

InnoForm VA roll form taps are specifically designed for stainless and alloyed steel applications
Spiral point design to push the chips forward
GLT-1 maximizes tool life and performance with a combination of a hard surface and an anti-friction layer
Replacement part for old tool C0203000.0127
Spiral point creates tight curled chips that are pushed ahead of the tap
GLT-1 coating hard surface coating with anti-friction layer, in a PVD process 500 deg C a coating thickness of 2 to 4 um can be realized
The combination of a hard surface coating approximate 3000 HV with an anti-friction top layer yields decisive tool life advantages, chip flow is also improved
DIN/DIN standard dimensions for overall length and shank size

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-VA C020C300, Measurement System: Metric, MC, M27x3, 4-5 Plug Chamfer, 3 Flutes, HSS-E, GLT-1, Class of Fit: 6H, Right Hand Cutting, 36 mm Thread Length, 160 mm Overall Length, 20 mm Shank Dia, Cast Iron, Copper Zinc Alloys, Stainless Steel and Steel Material Application, No Through Coolant (Yes/No)

DIN 13|ISO Certified

Catalog

Full Engineering Drawing

Manufacturer Name: Emuge-Franken

Chamfer Type: 4-5 Plug

Class of Fit: 6H

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-1, GLT-1 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Cast Iron, Copper Zinc Alloys, Stainless Steel and Steel

Measurement System: Metric

Number of Flutes: 3

Overall Length: 160 mm

Series: Rekord 2B-VA C020C300

Shank Diameter: 20 mm

Thread Length: 36 mm

Thread Size: M27x3

Thread Standard: M, MC

Through Coolant (Yes/No): No

Type: Form B Reduced Shank

InnoForm VA roll form taps are specifically designed for stainless and alloyed steel applications
Spiral point design to push the chips forward
GLT-1 maximizes tool life and performance with a combination of a hard surface and an anti-friction layer
Replacement part for old tool C0203000.0127
Spiral point creates tight curled chips that are pushed ahead of the tap
GLT-1 coating hard surface coating with anti-friction layer, in a PVD process 500 deg C a coating thickness of 2 to 4 um can be realized
The combination of a hard surface coating approximate 3000 HV with an anti-friction top layer yields decisive tool life advantages, chip flow is also improved
DIN/DIN standard dimensions for overall length and shank size

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-VA C020C300, Measurement System: Metric, MC, M27x3, 4-5 Plug Chamfer, 3 Flutes, HSS-E, GLT-1, Class of Fit: 6H, Right Hand Cutting, 36 mm Thread Length, 160 mm Overall Length, 20 mm Shank Dia, Cast Iron, Copper Zinc Alloys, Stainless Steel and Steel Material Application, No Through Coolant (Yes/No)

DIN 13|ISO Certified

Catalog

Full Engineering Drawing
