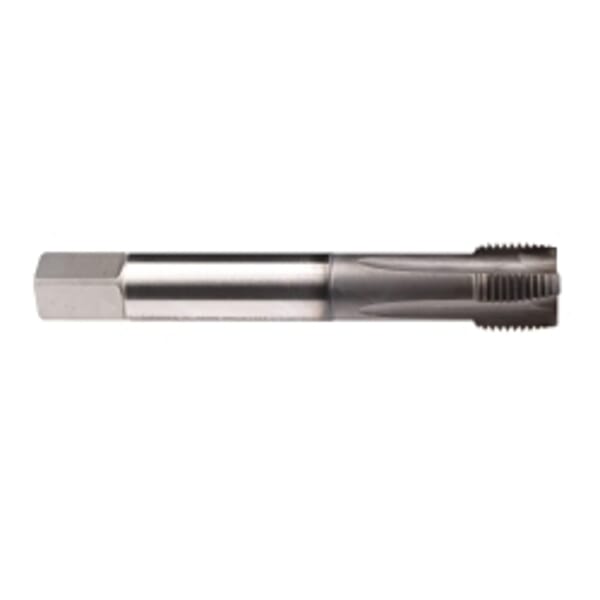

Name: Emuge C020A601.0422 Rekord 2B-Z-PM C020A601 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, M20x1.5 Thread, 4-5 Plug Chamfer, 4 Flutes, GLT-1, HSS-E-PM
Brand: Emuge-Franken
SKU: EMUGE_Q2_2019_00657
Availability: OutOfStock

Emuge-Franken

Emuge C020A601.0422 Rekord 2B-Z-PM C020A601 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, M20x1.5 Thread, 4-5 Plug Chamfer, 4 Flutes, GLT-1, HSS-E-PM

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge C020A601.0422 Rekord 2B-Z-PM C020A601 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, M20x1.5 Thread, 4-5 Plug Chamfer, 4 Flutes, GLT-1, HSS-E-PM

ManufacturerEmuge

Part #826513962

MFG #C020A601.0422

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-Z-PM C020A601, Measurement System: Metric, MF, M20x1.5, 4-5 Plug Chamfer, 4 Flutes, HSS-E-PM, GLT-1, Class of Fit: 6HX, Right Hand Cutting, 17 mm Thread Length, 125 mm Overall Length, 16 mm Shank Dia, Aluminum Cast Alloys, Cast Iron, Copper Alloys, Stainless Steel and Steel Material Application, No Through Coolant (Yes/No)

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 4-5 Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-1, GLT-1 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Material Application: Aluminum Cast Alloys, Cast Iron, Copper Alloys, Stainless Steel and Steel

Measurement System: Metric

Number of Flutes: 4

Overall Length: 125 mm

Series: Rekord 2B-Z-PM C020A601

Shank Diameter: 16 mm

Thread Length: 17 mm

Thread Size: M20x1.5

Thread Standard: MF

Through Coolant (Yes/No): No

Type: Form B Reduced Shank

InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
Spiral point design to push the chips forward
Z designates that the geometry is best suited for CNC equipment with synchronous feed control
GLT-1 maximizes tool life and performance with a combination of a hard surface and an anti-friction layer
Replacement part for old tool C020C401.0422
Spiral point creates tight curled chips that are pushed ahead of the tap
DIN/DIN standard dimensions for overall length and shank size
The combination of a hard surface coating (approximately 3000 HV) with a top anti-friction layer provides increased tool life

DIN 13|ISO Certified

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-Z-PM C020A601, Measurement System: Metric, MF, M20x1.5, 4-5 Plug Chamfer, 4 Flutes, HSS-E-PM, GLT-1, Class of Fit: 6HX, Right Hand Cutting, 17 mm Thread Length, 125 mm Overall Length, 16 mm Shank Dia, Aluminum Cast Alloys, Cast Iron, Copper Alloys, Stainless Steel and Steel Material Application, No Through Coolant (Yes/No)

Catalog

Full Engineering Drawing

Manufacturer Name: Emuge-Franken

Chamfer Type: 4-5 Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-1, GLT-1 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Material Application: Aluminum Cast Alloys, Cast Iron, Copper Alloys, Stainless Steel and Steel

Measurement System: Metric

Number of Flutes: 4

Overall Length: 125 mm

Series: Rekord 2B-Z-PM C020A601

Shank Diameter: 16 mm

Thread Length: 17 mm

Thread Size: M20x1.5

Thread Standard: MF

Through Coolant (Yes/No): No

Type: Form B Reduced Shank

InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
Spiral point design to push the chips forward
Z designates that the geometry is best suited for CNC equipment with synchronous feed control
GLT-1 maximizes tool life and performance with a combination of a hard surface and an anti-friction layer
Replacement part for old tool C020C401.0422
Spiral point creates tight curled chips that are pushed ahead of the tap
DIN/DIN standard dimensions for overall length and shank size
The combination of a hard surface coating (approximately 3000 HV) with a top anti-friction layer provides increased tool life

DIN 13|ISO Certified

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-Z-PM C020A601, Measurement System: Metric, MF, M20x1.5, 4-5 Plug Chamfer, 4 Flutes, HSS-E-PM, GLT-1, Class of Fit: 6HX, Right Hand Cutting, 17 mm Thread Length, 125 mm Overall Length, 16 mm Shank Dia, Aluminum Cast Alloys, Cast Iron, Copper Alloys, Stainless Steel and Steel Material Application, No Through Coolant (Yes/No)

Catalog

Full Engineering Drawing
