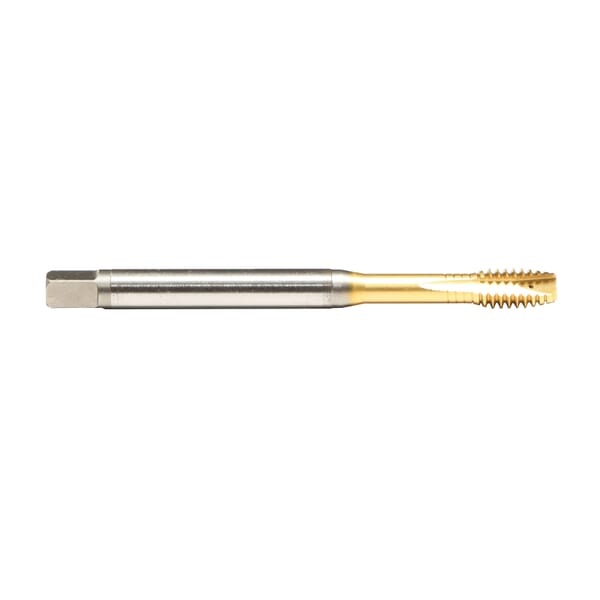

Name: Emuge B1088F01.0060 Rekord 1B-Z-IKZN-PM B1088F01 Form B Reinforced Shank Spiral Point Tap, Right Hand Cutting, M6x1 Thread, 4-5 Plug Chamfer, TiN 70 Coated, HSS-E-PM
Brand: Emuge-Franken
SKU: EMUGE_Q2_2019_00110
Availability: OutOfStock

Emuge-Franken

Emuge B1088F01.0060 Rekord 1B-Z-IKZN-PM B1088F01 Form B Reinforced Shank Spiral Point Tap, Right Hand Cutting, M6x1 Thread, 4-5 Plug Chamfer, TiN 70 Coated, HSS-E-PM

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge B1088F01.0060 Rekord 1B-Z-IKZN-PM B1088F01 Form B Reinforced Shank Spiral Point Tap, Right Hand Cutting, M6x1 Thread, 4-5 Plug Chamfer, TiN 70 Coated, HSS-E-PM

ManufacturerEmuge

Part #826513823

MFG #B1088F01.0060

Emuge Spiral Point Tap, Form B Reinforced Shank, Series: Rekord 1B-Z-IKZN-PM B1088F01, Measurement System: Metric, MC Thread Standard, M6x1 Thread, 4-5 Plug Chamfer, HSS-E-PM, TiN 70 Coated, Class of Fit: 6HX, Right Hand Cutting Direction, 10 mm Thread Length, 80 mm Overall Length, 6 mm Shank Diameter, Aluminum Alloys, Cast Iron, Copper Alloys, Pure Titanium, Stainless Steel and Steel Material Application, Yes Through Coolant

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 4-5 Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN 70 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Material Application: Aluminum Alloys, Cast Iron, Copper Alloys, Pure Titanium, Stainless Steel and Steel

Measurement System: Metric

Overall Length: 80 mm

Series: Rekord 1B-Z-IKZN-PM B1088F01

Shank Diameter: 6 mm

Thread Length: 10 mm

Thread Size: M6x1

Thread Standard: MC

Through Coolant (Yes/No): Yes

Type: Form B Reinforced Shank

InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
Spiral point design to push the chips forward
TiN coating provides additional wear-resistance and reduces cold welding
Z designation for CNC controlled machines
Spiral point creates tight curled chips that are pushed ahead of the tap
Replacement part for old tool B1083701.0060
IKZN - radial coolant hole design
DIN/DIN standard dimensions for overall length and shank size

DIN 13|ISO Certified

Emuge Spiral Point Tap, Form B Reinforced Shank, Series: Rekord 1B-Z-IKZN-PM B1088F01, Measurement System: Metric, MC Thread Standard, M6x1 Thread, 4-5 Plug Chamfer, HSS-E-PM, TiN 70 Coated, Class of Fit: 6HX, Right Hand Cutting Direction, 10 mm Thread Length, 80 mm Overall Length, 6 mm Shank Diameter, Aluminum Alloys, Cast Iron, Copper Alloys, Pure Titanium, Stainless Steel and Steel Material Application, Yes Through Coolant
