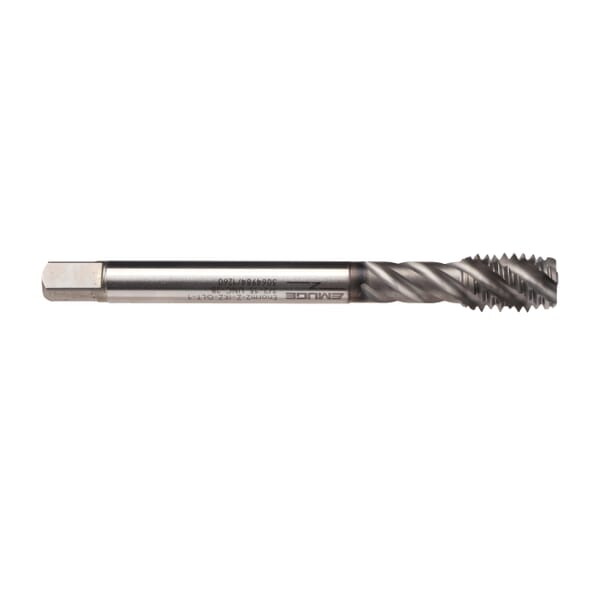

Emuge CU99C400.5015 Enorm 2-Z/E-IKZ CU99C400 Form E Fast Reduced Shank Spiral Flute Tap, Right Hand Cutting, 5/8-11 Thread, 1.5-2 Bottoming Plug Chamfer, Right Hand Flute Direction, 4 Flutes, GLT-1 Coated, HSS-E

ManufacturerEmuge

Part #826513743

MFG #CU99C400.5015

Emuge Spiral Flute Tap, Form E Fast Reduced Shank, Series: Enorm 2-Z/E-IKZ CU99C400, Measurement System: Imperial, UNC Thread Standard, 5/8-11 Thread, 1.5-2 Bottoming Plug Chamfer, 4 Flutes, HSS-E, GLT-1 Coated, Class of Fit: 2B, Right Hand Cutting Direction, 0.866 in Thread Length, 4.331 in Overall Length, 0.48 in Shank Diameter, Right Hand Flute Direction, Aluminum Cast Alloys, Copper Alloys, Pure Titanium, Stainless Steel and Steel Material Application, Yes Through Coolant

$193.10

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 1.5-2 Bottoming Plug

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-1 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Aluminum Cast Alloys, Copper Alloys, Pure Titanium, Stainless Steel and Steel

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 4.331 in

Series: Enorm 2-Z/E-IKZ CU99C400

Shank Diameter: 0.48 in

Thread Length: 0.866 in

Thread Size: 5/8-11

Thread Standard: UNC

Through Coolant (Yes/No): Yes

Type: Form E Fast Reduced Shank

InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
GLT-1 maximizes tool life and performance with a combination of a hard surface and an anti-friction layer
The fast spiral flute (45 deg) provides good chip removal from blind holes
Z designates a tool design for CNC controlled machines with synchronous feed control
TiCN coated for abrasion-resistance and additional tool life
IKZ - axial coolant hole design
DIN/ANSI taps made with Emuges trademark long shanks DIN length for extra reach and ANSI shanks

ASME B1.1|ANSI Specified|DIN 371, 376

Emuge Spiral Flute Tap, Form E Fast Reduced Shank, Series: Enorm 2-Z/E-IKZ CU99C400, Measurement System: Imperial, UNC Thread Standard, 5/8-11 Thread, 1.5-2 Bottoming Plug Chamfer, 4 Flutes, HSS-E, GLT-1 Coated, Class of Fit: 2B, Right Hand Cutting Direction, 0.866 in Thread Length, 4.331 in Overall Length, 0.48 in Shank Diameter, Right Hand Flute Direction, Aluminum Cast Alloys, Copper Alloys, Pure Titanium, Stainless Steel and Steel Material Application, Yes Through Coolant
