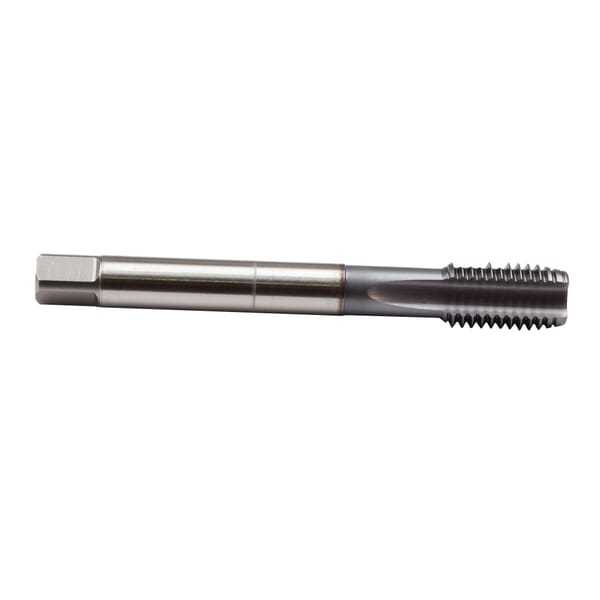

Name: Emuge CU959101.5012 Rekord 2A-H-IKZ CU959101 Form C Reduced Shank Straight Flute Machine Tap, Right Hand Cutting, 7/16-14 Thread, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, TiCN Coated, HSS-E
Brand: Emuge-Franken
SKU: EMUGE_Q2_2019_01027
Availability: OutOfStock

Emuge-Franken

Emuge CU959101.5012 Rekord 2A-H-IKZ CU959101 Form C Reduced Shank Straight Flute Machine Tap, Right Hand Cutting, 7/16-14 Thread, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, TiCN Coated, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge CU959101.5012 Rekord 2A-H-IKZ CU959101 Form C Reduced Shank Straight Flute Machine Tap, Right Hand Cutting, 7/16-14 Thread, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, TiCN Coated, HSS-E

ManufacturerEmuge

Part #826513709

MFG #CU959101.5012

Emuge Straight Flute Machine Tap, Form C Reduced Shank, Series: Threadmaster MTS-K002, Measurement System: Imperial, UNC, 7/16-14, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2BX, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.323 in Shank Dia, Cast Iron, Copper Alloys, Duroplastic, Graphite and Steel Material Application, Yes Through Coolant (Yes/No)

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 2-3 Modified Bottoming Plug

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Cast Iron, Copper Alloys, Duroplastic, Graphite and Steel

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 3.937 in

Series: Rekord 2A-H-IKZ CU959101

Shank Diameter: 0.323 in

Thread Length: 0.866 in

Thread Size: 7/16-14

Thread Standard: UNC

Through Coolant (Yes/No): Yes

Type: Form C Reduced Shank

Taps with the A-H designation are specifically designed for high tensile, short chipping materials
The Rekord A flute geometry is designed for short chipping materials and produces chips that stay in the flutes
TiCN coating provides higher surface hardness and added lubricity for extended tool life
IKZ - axial coolant hole design
TiCN coated option for wear-resistance and additional tool life
DIN/ANSI standard dimensions for overall length and shank size

Emuge Straight Flute Machine Tap, Form C Reduced Shank, Series: Threadmaster MTS-K002, Measurement System: Imperial, UNC, 7/16-14, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2BX, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.323 in Shank Dia, Cast Iron, Copper Alloys, Duroplastic, Graphite and Steel Material Application, Yes Through Coolant (Yes/No)

ASME B1.1|ANSI Specified|DIN 371, 376
