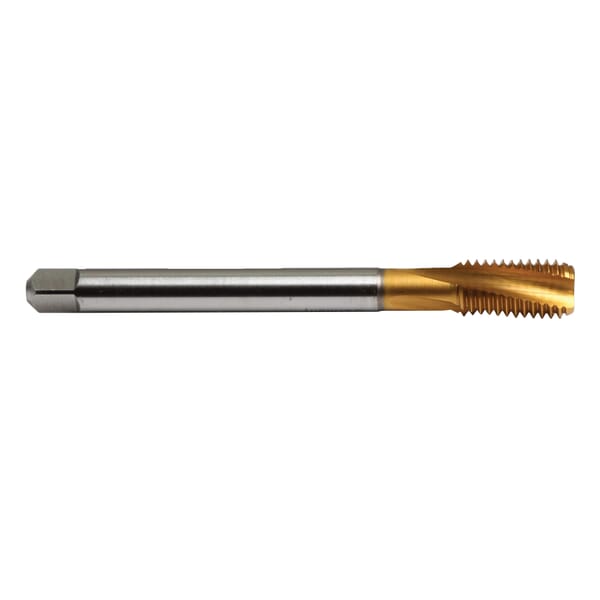

Name: Emuge CU451400.5018 Rekord 2D-STEEL CU451400 Form C Reduced Shank Slow Spiral Flute Tap, Right Hand Cutting, 1-8 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E
Brand: Emuge-Franken
SKU: EMUGE_Q2_2019_00925
Availability: OutOfStock

Emuge-Franken

Emuge CU451400.5018 Rekord 2D-STEEL CU451400 Form C Reduced Shank Slow Spiral Flute Tap, Right Hand Cutting, 1-8 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge CU451400.5018 Rekord 2D-STEEL CU451400 Form C Reduced Shank Slow Spiral Flute Tap, Right Hand Cutting, 1-8 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E

ManufacturerEmuge

Part #826513676

MFG #CU451400.5018

Emuge Spiral Flute Tap, Form C Reduced Shank Slow, Series: Rekord 2D-STEEL CU451400, Measurement System: Imperial, UNC, 1-8, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 2B, Right Hand Cutting, 1.417 in Thread Length, 6.299 in Overall Length, 0.8 in Shank Dia, Right Hand Flute Direction, Aluminum Alloys, Cast Iron, Copper Alloys, Malleable Cast Iron and Steel Material Application, No Through Coolant (Yes/No)

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 2-3 Modified Bottoming Plug

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Aluminum Alloys, Cast Iron, Copper Alloys, Malleable Cast Iron and Steel

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 6.299 in

Series: Rekord 2D-STEEL CU451400

Shank Diameter: 0.8 in

Thread Length: 1.417 in

Thread Size: 1-8

Thread Standard: UNC

Through Coolant (Yes/No): No

Type: Form C Reduced Shank Slow

Taps with the STEEL designation are well suited for low tensile, alloyed, mild steel and long chipping materials
The Rekord D geometry excels in horizontal applications
TiN coating provides additional wear-resistance and reduces cold welding
15 deg right hand spiral flute
DIN/ANSI taps made with Emuges trademark long shanks DIN length for extra reach and ANSI shanks
Replacement part for old tool CU453000.5018

Emuge Spiral Flute Tap, Form C Reduced Shank Slow, Series: Rekord 2D-STEEL CU451400, Measurement System: Imperial, UNC, 1-8, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 2B, Right Hand Cutting, 1.417 in Thread Length, 6.299 in Overall Length, 0.8 in Shank Dia, Right Hand Flute Direction, Aluminum Alloys, Cast Iron, Copper Alloys, Malleable Cast Iron and Steel Material Application, No Through Coolant (Yes/No)

ASME B1.1|ANSI Specified|DIN 371, 376

Catalog

Full Engineering Drawing

Manufacturer Name: Emuge-Franken

Chamfer Type: 2-3 Modified Bottoming Plug

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Aluminum Alloys, Cast Iron, Copper Alloys, Malleable Cast Iron and Steel

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 6.299 in

Series: Rekord 2D-STEEL CU451400

Shank Diameter: 0.8 in

Thread Length: 1.417 in

Thread Size: 1-8

Thread Standard: UNC

Through Coolant (Yes/No): No

Type: Form C Reduced Shank Slow

Taps with the STEEL designation are well suited for low tensile, alloyed, mild steel and long chipping materials
The Rekord D geometry excels in horizontal applications
TiN coating provides additional wear-resistance and reduces cold welding
15 deg right hand spiral flute
DIN/ANSI taps made with Emuges trademark long shanks DIN length for extra reach and ANSI shanks
Replacement part for old tool CU453000.5018

Emuge Spiral Flute Tap, Form C Reduced Shank Slow, Series: Rekord 2D-STEEL CU451400, Measurement System: Imperial, UNC, 1-8, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 2B, Right Hand Cutting, 1.417 in Thread Length, 6.299 in Overall Length, 0.8 in Shank Dia, Right Hand Flute Direction, Aluminum Alloys, Cast Iron, Copper Alloys, Malleable Cast Iron and Steel Material Application, No Through Coolant (Yes/No)

ASME B1.1|ANSI Specified|DIN 371, 376

Catalog

Full Engineering Drawing
