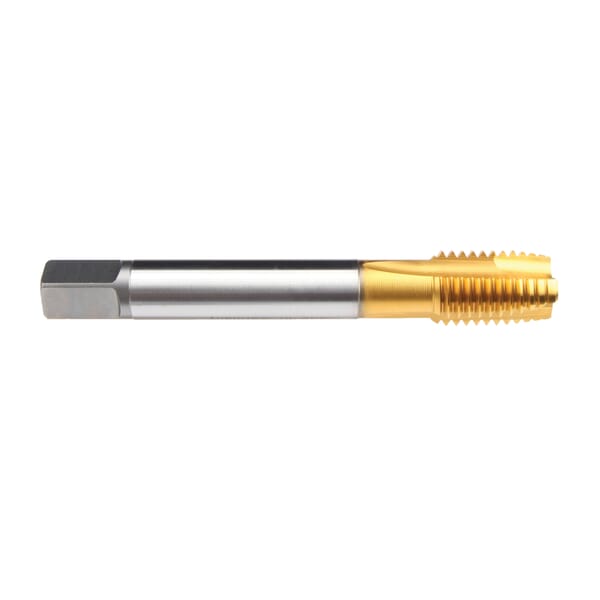

Name: Emuge CU208400.5014 Rekord 2B-STEEL-L CU208400 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, 9/16-12 Thread, 4-5 Plug Chamfer, 3 Flutes, TiN Coated, HSS-E
Brand: Emuge-Franken
SKU: EMUGE_Q2_2019_00813
Availability: OutOfStock

Emuge-Franken

Emuge CU208400.5014 Rekord 2B-STEEL-L CU208400 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, 9/16-12 Thread, 4-5 Plug Chamfer, 3 Flutes, TiN Coated, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge CU208400.5014 Rekord 2B-STEEL-L CU208400 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, 9/16-12 Thread, 4-5 Plug Chamfer, 3 Flutes, TiN Coated, HSS-E

ManufacturerEmuge

Part #826513576

MFG #CU208400.5014

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-STEEL-L CU208400, Measurement System: Imperial, UNC, 9/16-12, 4-5 Plug Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 2B, Right Hand Cutting, 1.024 in Thread Length, 4.331 in Overall Length, 0.429 in Shank Dia, Cast Iron, Copper Alloys and Steel Material Application, No Through Coolant (Yes/No)

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 4-5 Plug

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Cast Iron, Copper Alloys and Steel

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 4.331 in

Series: Rekord 2B-STEEL-L CU208400

Shank Diameter: 0.429 in

Thread Length: 1.024 in

Thread Size: 9/16-12

Thread Standard: UNC

Through Coolant (Yes/No): No

Type: Form B Reduced Shank

Taps with the STEEL designation are well suited for low tensile, alloyed, mild steel and long chipping materials
Spiral point design to push the chips forward
TiN coating provides additional wear-resistance and reduces cold welding
Replacement part for old tool CU201000.5014
Spiral point creates tight curled chips that are pushed ahead of the tap
DIN/ANSI taps made with Emuges trademark long shanks DIN length for extra reach and ANSI shanks

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-STEEL-L CU208400, Measurement System: Imperial, UNC, 9/16-12, 4-5 Plug Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 2B, Right Hand Cutting, 1.024 in Thread Length, 4.331 in Overall Length, 0.429 in Shank Dia, Cast Iron, Copper Alloys and Steel Material Application, No Through Coolant (Yes/No)

ASME B1.1|ANSI Specified|DIN 371, 376

Catalog

Full Engineering Drawing

Manufacturer Name: Emuge-Franken

Chamfer Type: 4-5 Plug

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Cast Iron, Copper Alloys and Steel

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 4.331 in

Series: Rekord 2B-STEEL-L CU208400

Shank Diameter: 0.429 in

Thread Length: 1.024 in

Thread Size: 9/16-12

Thread Standard: UNC

Through Coolant (Yes/No): No

Type: Form B Reduced Shank

Taps with the STEEL designation are well suited for low tensile, alloyed, mild steel and long chipping materials
Spiral point design to push the chips forward
TiN coating provides additional wear-resistance and reduces cold welding
Replacement part for old tool CU201000.5014
Spiral point creates tight curled chips that are pushed ahead of the tap
DIN/ANSI taps made with Emuges trademark long shanks DIN length for extra reach and ANSI shanks

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-STEEL-L CU208400, Measurement System: Imperial, UNC, 9/16-12, 4-5 Plug Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 2B, Right Hand Cutting, 1.024 in Thread Length, 4.331 in Overall Length, 0.429 in Shank Dia, Cast Iron, Copper Alloys and Steel Material Application, No Through Coolant (Yes/No)

ASME B1.1|ANSI Specified|DIN 371, 376

Catalog

Full Engineering Drawing
