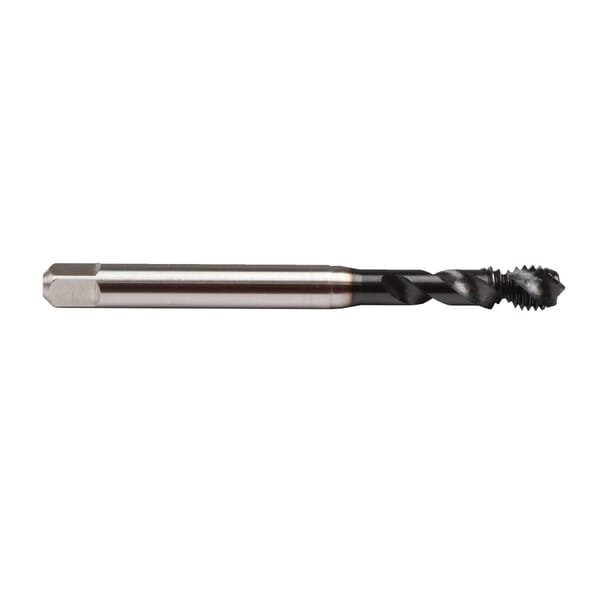

Name: Emuge BU50S800.5041 Enorm 1-AL BU50S800 Form C Fast Reinforced Shank Spiral Flute Tap, Right Hand Cutting, #10-32 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 2 Flutes, GLT-8 Coated, HSS-E
Brand: Emuge-Franken
SKU: EMUGE_Q2_2019_00469
Availability: OutOfStock

Emuge-Franken

Emuge BU50S800.5041 Enorm 1-AL BU50S800 Form C Fast Reinforced Shank Spiral Flute Tap, Right Hand Cutting, #10-32 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 2 Flutes, GLT-8 Coated, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge BU50S800.5041 Enorm 1-AL BU50S800 Form C Fast Reinforced Shank Spiral Flute Tap, Right Hand Cutting, #10-32 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 2 Flutes, GLT-8 Coated, HSS-E

ManufacturerEmuge

Part #826513497

MFG #BU50S800.5041

Emuge Spiral Flute Tap, Form C Fast Reinforced Shank, Series: RD Series, Measurement System: Imperial, UNF, #10-32, 2-3 Modified Bottoming Plug Chamfer, 2 Flutes, HSS-E, GLT-8 Coated, Class of Fit: 2B, Right Hand Cutting, 0.512 in Thread Length, 2.756 in Overall Length, 0.194 in Shank Dia, Right Hand Flute Direction, Aluminum and Aluminum Cast Alloys Material Application, No Through Coolant (Yes/No)

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 2-3 Modified Bottoming Plug

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-8 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Aluminum and Aluminum Cast Alloys

Measurement System: Imperial

Number of Flutes: 2

Overall Length: 2.756 in

Series: Enorm 1-AL BU50S800

Shank Diameter: 0.194 in

Thread Length: 0.512 in

Thread Size: #10-32

Thread Standard: UNF

Through Coolant (Yes/No): No

Type: Form C Fast Reinforced Shank

InnoForm Al roll form taps are specifically designed for aluminum alloy applications
GLT-1 maximizes tool life and performance with a combination of a hard surface and an anti-friction layer
The fast spiral flute (45 deg) provides good chip removal from blind holes
AL designates a design specifically for wrought aluminum alloys
GLT-8 non-stick/low friction PVD coating well suited for machining of aluminum alloys
DIN/ANSI standard dimensions on flute length and shank sizes

ASME B1.1|ANSI Specified|DIN 371, 374

Emuge Spiral Flute Tap, Form C Fast Reinforced Shank, Series: RD Series, Measurement System: Imperial, UNF, #10-32, 2-3 Modified Bottoming Plug Chamfer, 2 Flutes, HSS-E, GLT-8 Coated, Class of Fit: 2B, Right Hand Cutting, 0.512 in Thread Length, 2.756 in Overall Length, 0.194 in Shank Dia, Right Hand Flute Direction, Aluminum and Aluminum Cast Alloys Material Application, No Through Coolant (Yes/No)

Catalog

Full Engineering Drawing

Manufacturer Name: Emuge-Franken

Chamfer Type: 2-3 Modified Bottoming Plug

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-8 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Aluminum and Aluminum Cast Alloys

Measurement System: Imperial

Number of Flutes: 2

Overall Length: 2.756 in

Series: Enorm 1-AL BU50S800

Shank Diameter: 0.194 in

Thread Length: 0.512 in

Thread Size: #10-32

Thread Standard: UNF

Through Coolant (Yes/No): No

Type: Form C Fast Reinforced Shank

InnoForm Al roll form taps are specifically designed for aluminum alloy applications
GLT-1 maximizes tool life and performance with a combination of a hard surface and an anti-friction layer
The fast spiral flute (45 deg) provides good chip removal from blind holes
AL designates a design specifically for wrought aluminum alloys
GLT-8 non-stick/low friction PVD coating well suited for machining of aluminum alloys
DIN/ANSI standard dimensions on flute length and shank sizes

ASME B1.1|ANSI Specified|DIN 371, 374

Emuge Spiral Flute Tap, Form C Fast Reinforced Shank, Series: RD Series, Measurement System: Imperial, UNF, #10-32, 2-3 Modified Bottoming Plug Chamfer, 2 Flutes, HSS-E, GLT-8 Coated, Class of Fit: 2B, Right Hand Cutting, 0.512 in Thread Length, 2.756 in Overall Length, 0.194 in Shank Dia, Right Hand Flute Direction, Aluminum and Aluminum Cast Alloys Material Application, No Through Coolant (Yes/No)

Catalog

Full Engineering Drawing
