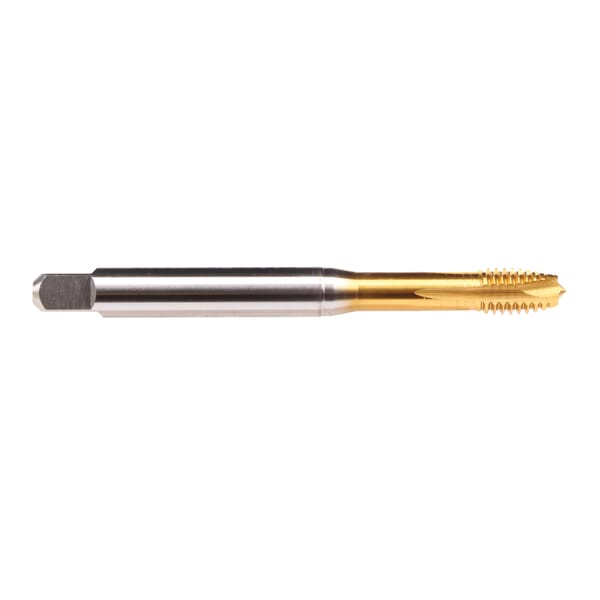

Emuge BU088F01.5045 Rekord 1B-Z-IKZN-PM BU088F01 Form B Reinforced Shank Spiral Point Tap, Right Hand Cutting, 3/8-24 Thread, 4-5 Plug Chamfer, 4 Flutes, TiN 70 Coated, HSS-E-PM

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge BU088F01.5045 Rekord 1B-Z-IKZN-PM BU088F01 Form B Reinforced Shank Spiral Point Tap, Right Hand Cutting, 3/8-24 Thread, 4-5 Plug Chamfer, 4 Flutes, TiN 70 Coated, HSS-E-PM

ManufacturerEmuge

Part #826513329

MFG #BU088F01.5045

Emuge Spiral Point Tap, Form B Reinforced Shank, Series: Rekord 1B-Z-IKZN-PM BU088F01, Measurement System: Imperial, UNF, 3/8-24, 4-5 Plug Chamfer, 4 Flutes, HSS-E-PM, TiN 70 Coated, Class of Fit: 2BX, Right Hand Cutting, 0.394 in Thread Length, 3.937 in Overall Length, 0.381 in Shank Dia, Aluminum Alloys, Cast Iron, Copper Alloys, Pure Titanium, Stainless Steel and Steel Material Application, Yes Through Coolant (Yes/No)

$138.78

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 4-5 Plug

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN 70 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Material Application: Aluminum Alloys, Cast Iron, Copper Alloys, Pure Titanium, Stainless Steel and Steel

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 3.937 in

Series: Rekord 1B-Z-IKZN-PM BU088F01

Shank Diameter: 0.381 in

Thread Length: 0.394 in

Thread Size: 3/8-24

Thread Standard: UNF

Through Coolant (Yes/No): Yes

Type: Form B Reinforced Shank

InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
Spiral point design to push the chips forward
TiN coating provides additional wear-resistance and reduces cold welding
Z designation for CNC controlled machines
Replacement part for old tool BU083701.5045
Spiral point creates tight curled chips that are pushed ahead of the tap
IKZN - radial coolant hole design
DIN/ANSI taps made with Emuges trademark long shanks DIN length for extra reach and ANSI shanks

ASME B1.1|ANSI Specified|DIN 371, 374

Emuge Spiral Point Tap, Form B Reinforced Shank, Series: Rekord 1B-Z-IKZN-PM BU088F01, Measurement System: Imperial, UNF, 3/8-24, 4-5 Plug Chamfer, 4 Flutes, HSS-E-PM, TiN 70 Coated, Class of Fit: 2BX, Right Hand Cutting, 0.394 in Thread Length, 3.937 in Overall Length, 0.381 in Shank Dia, Aluminum Alloys, Cast Iron, Copper Alloys, Pure Titanium, Stainless Steel and Steel Material Application, Yes Through Coolant (Yes/No)

Catalog

Full Engineering Drawing

Manufacturer Name: Emuge-Franken

Chamfer Type: 4-5 Plug

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN 70 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Material Application: Aluminum Alloys, Cast Iron, Copper Alloys, Pure Titanium, Stainless Steel and Steel

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 3.937 in

Series: Rekord 1B-Z-IKZN-PM BU088F01

Shank Diameter: 0.381 in

Thread Length: 0.394 in

Thread Size: 3/8-24

Thread Standard: UNF

Through Coolant (Yes/No): Yes

Type: Form B Reinforced Shank

InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
Spiral point design to push the chips forward
TiN coating provides additional wear-resistance and reduces cold welding
Z designation for CNC controlled machines
Replacement part for old tool BU083701.5045
Spiral point creates tight curled chips that are pushed ahead of the tap
IKZN - radial coolant hole design
DIN/ANSI taps made with Emuges trademark long shanks DIN length for extra reach and ANSI shanks

ASME B1.1|ANSI Specified|DIN 371, 374

Emuge Spiral Point Tap, Form B Reinforced Shank, Series: Rekord 1B-Z-IKZN-PM BU088F01, Measurement System: Imperial, UNF, 3/8-24, 4-5 Plug Chamfer, 4 Flutes, HSS-E-PM, TiN 70 Coated, Class of Fit: 2BX, Right Hand Cutting, 0.394 in Thread Length, 3.937 in Overall Length, 0.381 in Shank Dia, Aluminum Alloys, Cast Iron, Copper Alloys, Pure Titanium, Stainless Steel and Steel Material Application, Yes Through Coolant (Yes/No)

Catalog

Full Engineering Drawing
