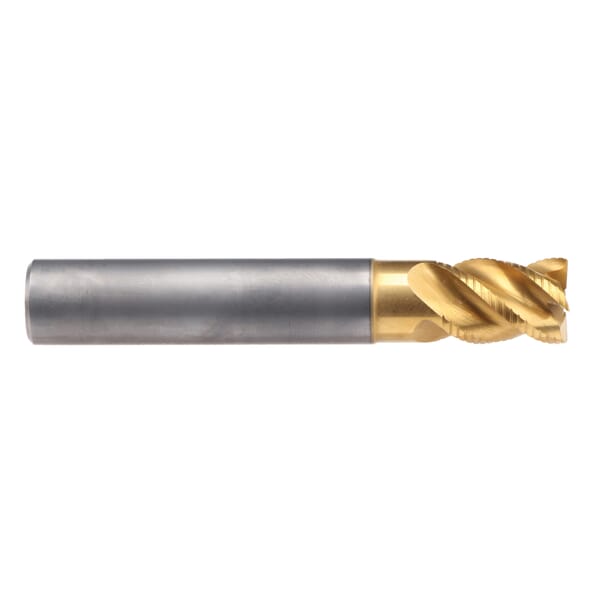

Name: Emuge 2646TZ.016 TiNox-Cut 2646TZ Stub Length Square End Mill With Axial Through Coolant, 16 mm Dia Cutter, 22 mm Length of Cut, 4 Flutes, 16 mm Dia Shank, 82 mm OAL, TiN/TiAlN
Brand: Emuge-Franken
SKU: EMUGE_Q1_2019_001491
Availability: OutOfStock

Emuge-Franken

Emuge 2646TZ.016 TiNox-Cut 2646TZ Stub Length Square End Mill With Axial Through Coolant, 16 mm Dia Cutter, 22 mm Length of Cut, 4 Flutes, 16 mm Dia Shank, 82 mm OAL, TiN/TiAlN

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge 2646TZ.016 TiNox-Cut 2646TZ Stub Length Square End Mill With Axial Through Coolant, 16 mm Dia Cutter, 22 mm Length of Cut, 4 Flutes, 16 mm Dia Shank, 82 mm OAL, TiN/TiAlN

ManufacturerEmuge

Part #826509399

MFG #2646TZ.016

Emuge Square End Mill, Stub Length, Series: TiNox-Cut 2646TZ, 16 mm Diameter Cutter, 82 mm Overall Length, 22 mm Length of Cut, 4 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, Carbide, TiN/TiAlN

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutter Diameter: 16 mm

Cutting Direction: Right Hand

Finish: TiN/TiAlN, TiN/TiAlN Coated

Flute Type: Spiral

Helix Angle: 45 deg

Length of Cut: 22 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 4

Overall Length: 82 mm

Series: TiNox-Cut 2646TZ

Shank Diameter: 16 mm

Shank Type: Cylindrical

Type: Stub Length

The TiNox-Cut series was especially developed for machining titanium alloys and nickel based alloys along with stainless steel
Vibration dampening with variable flute spacing
Heat and wear resistant multi-layer TiN/TiAlN - PVD coating
Semi-finishing roughing flute profile for optimum performance
Coolant fed (axial) design for efficient chip evacuation
Tool shanks are held to h5 tolerance and have a roughened surface (non-polished) for greater gripping force
Machining of difficult to cut materials

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Square End Mill, Stub Length, Series: TiNox-Cut 2646TZ, 16 mm Diameter Cutter, 82 mm Overall Length, 22 mm Length of Cut, 4 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, Carbide, TiN/TiAlN

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutter Diameter: 16 mm

Cutting Direction: Right Hand

Finish: TiN/TiAlN, TiN/TiAlN Coated

Flute Type: Spiral

Helix Angle: 45 deg

Length of Cut: 22 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 4

Overall Length: 82 mm

Series: TiNox-Cut 2646TZ

Shank Diameter: 16 mm

Shank Type: Cylindrical

Type: Stub Length

The TiNox-Cut series was especially developed for machining titanium alloys and nickel based alloys along with stainless steel
Vibration dampening with variable flute spacing
Heat and wear resistant multi-layer TiN/TiAlN - PVD coating
Semi-finishing roughing flute profile for optimum performance
Coolant fed (axial) design for efficient chip evacuation
Tool shanks are held to h5 tolerance and have a roughened surface (non-polished) for greater gripping force
Machining of difficult to cut materials

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Square End Mill, Stub Length, Series: TiNox-Cut 2646TZ, 16 mm Diameter Cutter, 82 mm Overall Length, 22 mm Length of Cut, 4 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, Carbide, TiN/TiAlN
