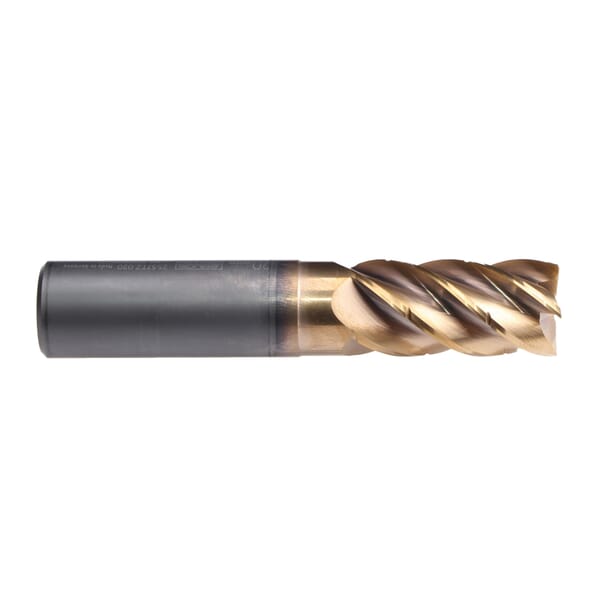

Emuge 2537TZ.016 Trochoidal TiNox-Cut 2537TZ Square End Mill With Axial Through Coolant, 16 mm Dia Cutter, 2XD Length of Cut, 5 Flutes, 16 mm Dia Shank, 92 mm OAL, TiN/TiAlN Coated
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Emuge 2537TZ.016 Trochoidal TiNox-Cut 2537TZ Square End Mill With Axial Through Coolant, 16 mm Dia Cutter, 2XD Length of Cut, 5 Flutes, 16 mm Dia Shank, 92 mm OAL, TiN/TiAlN Coated
ManufacturerEmuge
Part #826509320
MFG #2537TZ.016
Emuge Square End Mill, Series: Trochoidal TiNox-Cut 2537TZ, 16 mm Diameter Cutter, 92 mm Overall Length, 2XD Length of Cut, 5 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 38/42 deg Helix Angle, Weldon Flat Shank, Carbide, TiN/TiAlN Coated
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name:Â Emuge-Franken
Country of Origin:Â DE
Cutter Diameter:Â 16 mm
Cutting Direction:Â Right Hand
Finish:Â TiN/TiAlN Coated
Flute Type:Â Spiral
Helix Angle:Â 38/42 deg
Length of Cut:Â 2XD
Manufacturer Name:Â Emuge-Franken
Material:Â Carbide
Number of Flutes:Â 5
Overall Length:Â 92 mm
Series:Â Trochoidal TiNox-Cut 2537TZ
Shank Diameter:Â 16 mm
Shank Type:Â Weldon Flat
The Trochoidal TiNox-Cut series was especially developed for use with advanced milling strategies in machining titanium alloys, nickel based alloys and stainless steel
Vibration dampening with variable helix/flute spacing
Heat and wear resistant multi-layer TiN/TiAlN - PVD coating
Roughing/finishing flute profile for optimum performance
Staggered chip breaker design for even wear in depths up to 2XD
Coolant fed (axial) design for efficient chip evacuation
Machining of difficult to cut materials
DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Square End Mill, Series: Trochoidal TiNox-Cut 2537TZ, 16 mm Diameter Cutter, 92 mm Overall Length, 2XD Length of Cut, 5 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 38/42 deg Helix Angle, Weldon Flat Shank, Carbide, TiN/TiAlN Coated
The Trochoidal TiNox-Cut series was especially developed for use with advanced milling strategies in machining titanium alloys, nickel based alloys and stainless steel
Vibration dampening with variable helix/flute spacing
Heat and wear resistant multi-layer TiN/TiAlN - PVD coating
Roughing/finishing flute profile for optimum performance
Staggered chip breaker design for even wear in depths up to 2XD
Coolant fed (axial) design for efficient chip evacuation
Machining of difficult to cut materials
DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Square End Mill, Series: Trochoidal TiNox-Cut 2537TZ, 16 mm Diameter Cutter, 92 mm Overall Length, 2XD Length of Cut, 5 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 38/42 deg Helix Angle, Weldon Flat Shank, Carbide, TiN/TiAlN Coated
