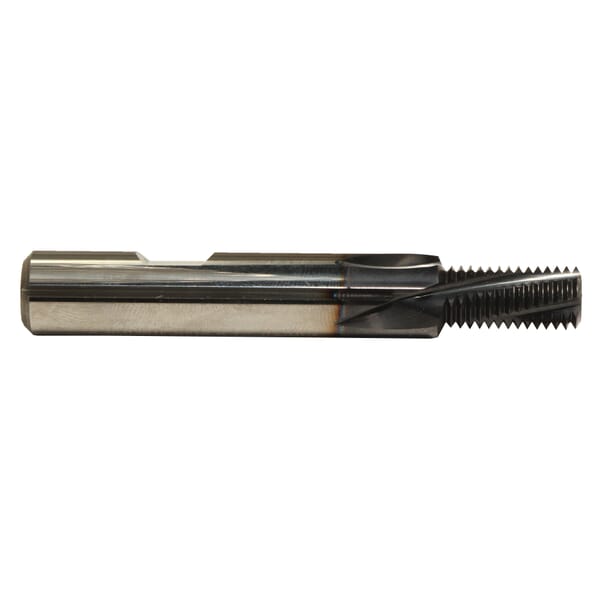

SHUR-THREAD GFT8B209.9676 GFI Style Spiral Flute Thread Mill, 1/16-27, 1/8-27 NPT (API-LP) Thread, 2-1/4 in OAL, 4 Flutes, 5/16 in Dia Shank
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
SHUR-THREAD GFT8B209.9676 GFI Style Spiral Flute Thread Mill, 1/16-27, 1/8-27 NPT (API-LP) Thread, 2-1/4 in OAL, 4 Flutes, 5/16 in Dia Shank
ManufacturerSHUR-THREAD
Part #826505443
MFG #GFT8B209.9676
SHUR-THREAD Spiral Flute Thread Mill, GFI Style, Series: GFT8B209, 1/16-27, 1/8-27 Thread, NPT (API-LP) Thread, 0.232 in Diameter Cutting, 0.537 in Length of Cut, 2-1/4 in Overall Length, 4 Flutes, Weldon Flat Shank, 5/16 in Shank Diameter, Carbide, TiAlN
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name:Â Emuge-Franken
Country of Origin:Â DE
Cutting Diameter:Â 0.232 in
Finish:Â TiAlN, TiAlN Coated
Length of Cut:Â 0.537 in
Manufacturer Name:Â Emuge-Franken
Material:Â Carbide
Number of Flutes:Â 4
Overall Length:Â 2-1/4 in
Series:Â GFT8B209
Shank Diameter:Â 5/16 in
Shank Type:Â Weldon Flat
Thread Size:Â 1/16-27, 1/8-27
Thread Type:Â NPT (API-LP)
Type:Â GFI Style
GFI-API tapered NPT pipe thread high performance design for maximum efficiency
NPT (API-LP) American tapered pipe thread, ANSI/ASME B1.20.1
For 1:16 taper internal threads
15 deg left hand spiral flute geometry/reduces vibration
Specialized TiAlN-T46 multi-layer PVD coated for heat and wear resistance
Increased core diameter
Extended 14 cutting teeth profile to produce API-LP threads
Multiple thread sizes possible with 1 tool
External shank coolant channels guide coolant directly to the cutting zone
ANSI/ASME B1.20.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
SHUR-THREAD Spiral Flute Thread Mill, GFI Style, Series: GFT8B209, 1/16-27, 1/8-27 Thread, NPT (API-LP) Thread, 0.232 in Diameter Cutting, 0.537 in Length of Cut, 2-1/4 in Overall Length, 4 Flutes, Weldon Flat Shank, 5/16 in Shank Diameter, Carbide, TiAlN
Manufacturer Name:Â Emuge-Franken
Country of Origin:Â DE
Cutting Diameter:Â 0.232 in
Finish:Â TiAlN, TiAlN Coated
Length of Cut:Â 0.537 in
Manufacturer Name:Â Emuge-Franken
Material:Â Carbide
Number of Flutes:Â 4
Overall Length:Â 2-1/4 in
Series:Â GFT8B209
Shank Diameter:Â 5/16 in
Shank Type:Â Weldon Flat
Thread Size:Â 1/16-27, 1/8-27
Thread Type:Â NPT (API-LP)
Type:Â GFI Style
GFI-API tapered NPT pipe thread high performance design for maximum efficiency
NPT (API-LP) American tapered pipe thread, ANSI/ASME B1.20.1
For 1:16 taper internal threads
15 deg left hand spiral flute geometry/reduces vibration
Specialized TiAlN-T46 multi-layer PVD coated for heat and wear resistance
Increased core diameter
Extended 14 cutting teeth profile to produce API-LP threads
Multiple thread sizes possible with 1 tool
External shank coolant channels guide coolant directly to the cutting zone
ANSI/ASME B1.20.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
SHUR-THREAD Spiral Flute Thread Mill, GFI Style, Series: GFT8B209, 1/16-27, 1/8-27 Thread, NPT (API-LP) Thread, 0.232 in Diameter Cutting, 0.537 in Length of Cut, 2-1/4 in Overall Length, 4 Flutes, Weldon Flat Shank, 5/16 in Shank Diameter, Carbide, TiAlN
