THREADS-ALL GFS83706.5041 THREADS-ALL GFS83706 ZGFI Style Single Profile Thread Mill, #10-32 UNF Thread, 1-7/8 in OAL, 4 Flutes, 3/16 in Dia Shank

ManufacturerTHREADS-ALL

Part #826505431

MFG #GFS83706.5041

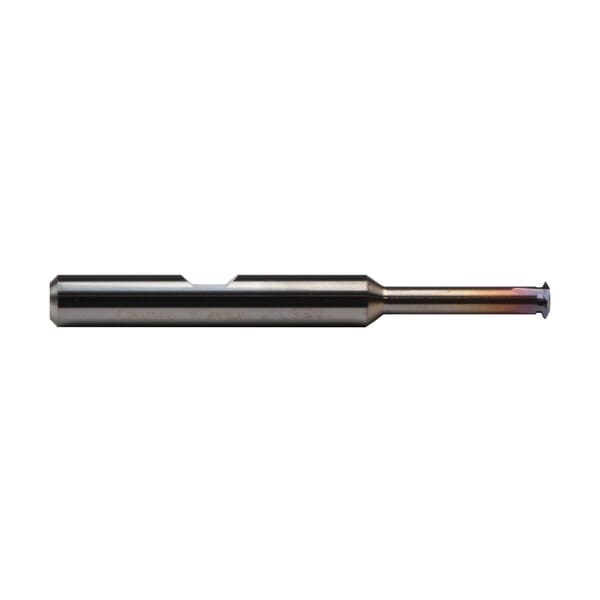

THREADS-ALL Single Profile Thread Mill, ZGFI Style, Series: THREADS-ALL GFS83706, #10-32 Thread, UNF Thread, 0.574 in Diameter Cutting, 0.57 in Length of Cut, 1-7/8 in Overall Length, 4 Flutes, Weldon Flat Shank, 3/16 in Shank Diameter, Carbide, TiCN Coated

$200.66

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 0.574 in

Finish: TiCN Coated

Length of Cut: 0.57 in

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 4

Overall Length: 1-7/8 in

Series: THREADS-ALL GFS83706

Shank Diameter: 3/16 in

Shank Type: Weldon Flat

Thread Size: #10-32

Thread Type: UNF

Type: ZGFI Style

ZGF-I style 3XD single plane, extended reach thread mills for difficult materials
Certain sizes can cut metric threads
Single tools can cut multiple thread pitch combinations
TiCN coated for wear resistance and additional tool life

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

THREADS-ALL Single Profile Thread Mill, ZGFI Style, Series: THREADS-ALL GFS83706, #10-32 Thread, UNF Thread, 0.574 in Diameter Cutting, 0.57 in Length of Cut, 1-7/8 in Overall Length, 4 Flutes, Weldon Flat Shank, 3/16 in Shank Diameter, Carbide, TiCN Coated

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 0.574 in

Finish: TiCN Coated

Length of Cut: 0.57 in

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 4

Overall Length: 1-7/8 in

Series: THREADS-ALL GFS83706

Shank Diameter: 3/16 in

Shank Type: Weldon Flat

Thread Size: #10-32

Thread Type: UNF

Type: ZGFI Style

ZGF-I style 3XD single plane, extended reach thread mills for difficult materials
Certain sizes can cut metric threads
Single tools can cut multiple thread pitch combinations
TiCN coated for wear resistance and additional tool life

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

THREADS-ALL Single Profile Thread Mill, ZGFI Style, Series: THREADS-ALL GFS83706, #10-32 Thread, UNF Thread, 0.574 in Diameter Cutting, 0.57 in Length of Cut, 1-7/8 in Overall Length, 4 Flutes, Weldon Flat Shank, 3/16 in Shank Diameter, Carbide, TiCN Coated
