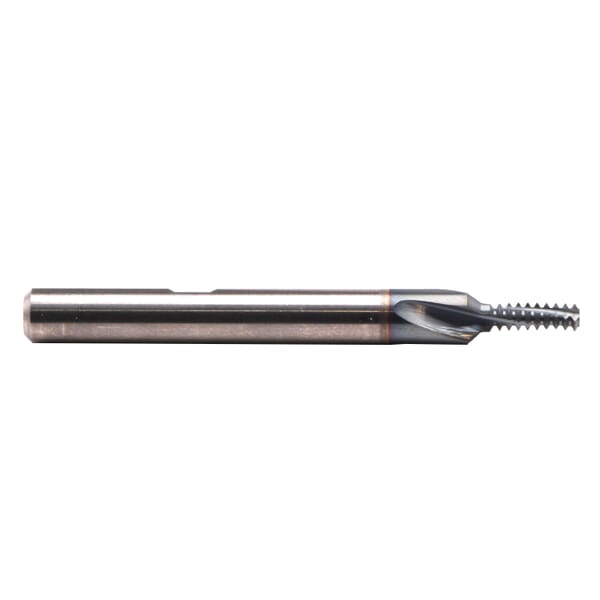

Name: SHUR-THREAD GFR35106.5043 SHUR-THREAD GFR35106 GFI Style Spiral Flute Thread Mill With Axial Through Coolant, 1/4-28 UNF Thread, 2-1/2 in OAL, 3 Flutes, 1/4 in Dia Shank
Brand: Emuge-Franken
SKU: EMUGE_Q1_2019_010437
Availability: OutOfStock

Emuge-Franken

SHUR-THREAD GFR35106.5043 SHUR-THREAD GFR35106 GFI Style Spiral Flute Thread Mill With Axial Through Coolant, 1/4-28 UNF Thread, 2-1/2 in OAL, 3 Flutes, 1/4 in Dia Shank

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

SHUR-THREAD GFR35106.5043 SHUR-THREAD GFR35106 GFI Style Spiral Flute Thread Mill With Axial Through Coolant, 1/4-28 UNF Thread, 2-1/2 in OAL, 3 Flutes, 1/4 in Dia Shank

ManufacturerSHUR-THREAD

Part #826505390

MFG #GFR35106.5043

SHUR-THREAD Spiral Flute Thread Mill, GFI Style, Series: SHUR-THREAD GFR35106, 1/4-28 Thread, UNF Thread, 0.203 in Diameter Cutting, 0.517 in Length of Cut, 2-1/2 in Overall Length, 3 Flutes, Weldon Flat Shank, 1/4 in Shank Diameter, 1-3/8 in Shank Length, Carbide, TiCN

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 0.203 in

Finish: TiCN, TiCN Coated

Length of Cut: 0.517 in

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 3

Overall Length: 2-1/2 in

Series: SHUR-THREAD GFR35106

Shank Diameter: 1/4 in

Shank Length: 1-3/8 in

Shank Type: Weldon Flat

Thread Size: 1/4-28

Thread Type: UNF

Type: GFI Style

GFI full profile thread mill designed for UNF threads in a wide range of soft and pre-hardened steel up to 58 Rc also stainless steel, aluminum, cast iron, titanium and inconel
15 deg right hand spiral flute geometry for blind and through hole applications in most materials
Solid carbide and axial coolant fed carbide option to aid in chip evacuation
For the production of internal and external threads
Tool for different thread sizes with standard thread profile (but for one pitch only)
Multi-layer TiCN coated for wear resistance and additional tool life

SHUR-THREAD Spiral Flute Thread Mill, GFI Style, Series: SHUR-THREAD GFR35106, 1/4-28 Thread, UNF Thread, 0.203 in Diameter Cutting, 0.517 in Length of Cut, 2-1/2 in Overall Length, 3 Flutes, Weldon Flat Shank, 1/4 in Shank Diameter, 1-3/8 in Shank Length, Carbide, TiCN

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 0.203 in

Finish: TiCN, TiCN Coated

Length of Cut: 0.517 in

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 3

Overall Length: 2-1/2 in

Series: SHUR-THREAD GFR35106

Shank Diameter: 1/4 in

Shank Length: 1-3/8 in

Shank Type: Weldon Flat

Thread Size: 1/4-28

Thread Type: UNF

Type: GFI Style

GFI full profile thread mill designed for UNF threads in a wide range of soft and pre-hardened steel up to 58 Rc also stainless steel, aluminum, cast iron, titanium and inconel
15 deg right hand spiral flute geometry for blind and through hole applications in most materials
Solid carbide and axial coolant fed carbide option to aid in chip evacuation
For the production of internal and external threads
Tool for different thread sizes with standard thread profile (but for one pitch only)
Multi-layer TiCN coated for wear resistance and additional tool life

SHUR-THREAD Spiral Flute Thread Mill, GFI Style, Series: SHUR-THREAD GFR35106, 1/4-28 Thread, UNF Thread, 0.203 in Diameter Cutting, 0.517 in Length of Cut, 2-1/2 in Overall Length, 3 Flutes, Weldon Flat Shank, 1/4 in Shank Diameter, 1-3/8 in Shank Length, Carbide, TiCN

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
