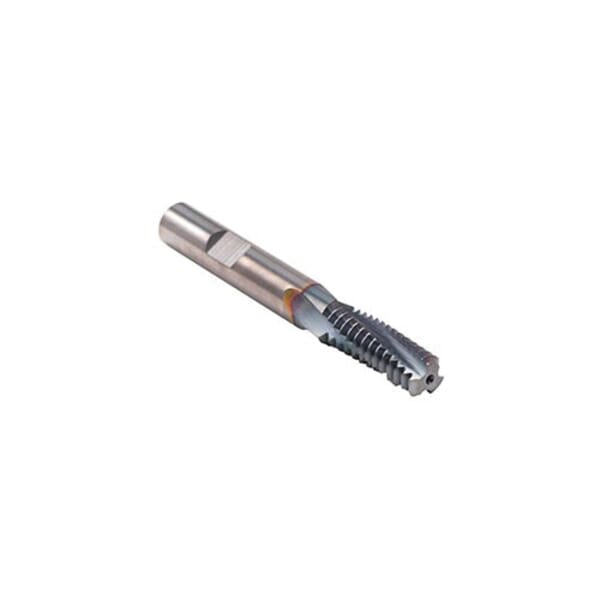

SHUR-THREAD GFR35106.5011 SHUR-THREAD GFR35106 GFI Style Spiral Flute Thread Mill With Axial Through Coolant, 3/8-16 UNC Thread, 2-1/2 in OAL, 3 Flutes, 5/16 in Dia Shank

ManufacturerSHUR-THREAD

Part #826505382

MFG #GFR35106.5011

SHUR-THREAD Spiral Flute Thread Mill, GFI Style, Series: SHUR-THREAD GFR35106, 3/8-16 Thread, UNC Thread, 0.301 in Diameter Cutting, 0.78 in Length of Cut, 2-1/2 in Overall Length, 3 Flutes, Weldon Flat Shank, 5/16 in Shank Diameter, 1-3/8 in Shank Length, Carbide, TiCN Coated

$303.73

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 0.301 in

Finish: TiCN Coated

Length of Cut: 0.78 in

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 3

Overall Length: 2-1/2 in

Series: SHUR-THREAD GFR35106

Shank Diameter: 5/16 in

Shank Length: 1-3/8 in

Shank Type: Weldon Flat

Thread Size: 3/8-16

Thread Type: UNC

Type: GFI Style

GFI full profile thread mill designed for UNC threads in a wide range of soft and pre-hardened steel up to 58 Rc also stainless steel, aluminum, cast iron, titanium and inconel
15 deg right hand spiral flute geometry for blind and through hole applications in most materials
Solid carbide and axial coolant fed carbide option to aid in chip evacuation
For the production of internal and external threads
Tool for different thread sizes with standard thread profile (but for one pitch only)
Multi-layer TiCN coated for wear resistance and additional tool life

SHUR-THREAD Spiral Flute Thread Mill, GFI Style, Series: SHUR-THREAD GFR35106, 3/8-16 Thread, UNC Thread, 0.301 in Diameter Cutting, 0.78 in Length of Cut, 2-1/2 in Overall Length, 3 Flutes, Weldon Flat Shank, 5/16 in Shank Diameter, 1-3/8 in Shank Length, Carbide, TiCN Coated

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 0.301 in

Finish: TiCN Coated

Length of Cut: 0.78 in

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 3

Overall Length: 2-1/2 in

Series: SHUR-THREAD GFR35106

Shank Diameter: 5/16 in

Shank Length: 1-3/8 in

Shank Type: Weldon Flat

Thread Size: 3/8-16

Thread Type: UNC

Type: GFI Style

GFI full profile thread mill designed for UNC threads in a wide range of soft and pre-hardened steel up to 58 Rc also stainless steel, aluminum, cast iron, titanium and inconel
15 deg right hand spiral flute geometry for blind and through hole applications in most materials
Solid carbide and axial coolant fed carbide option to aid in chip evacuation
For the production of internal and external threads
Tool for different thread sizes with standard thread profile (but for one pitch only)
Multi-layer TiCN coated for wear resistance and additional tool life

SHUR-THREAD Spiral Flute Thread Mill, GFI Style, Series: SHUR-THREAD GFR35106, 3/8-16 Thread, UNC Thread, 0.301 in Diameter Cutting, 0.78 in Length of Cut, 2-1/2 in Overall Length, 3 Flutes, Weldon Flat Shank, 5/16 in Shank Diameter, 1-3/8 in Shank Length, Carbide, TiCN Coated

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
