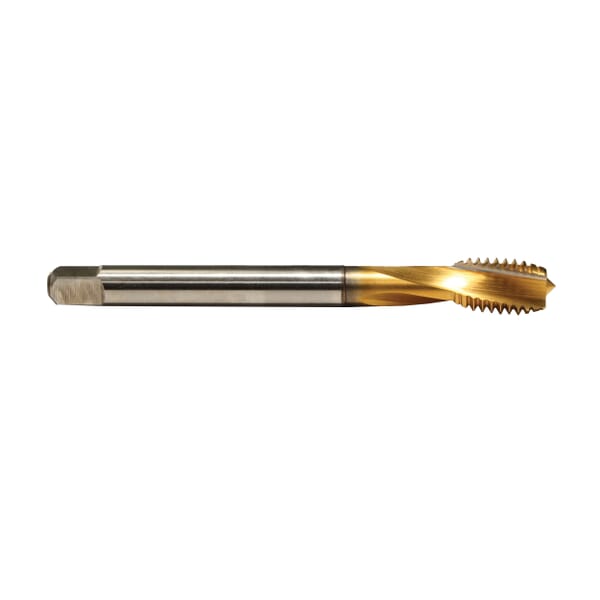

Emuge CU573701.5247 Rekord 2D-Z-BF CU573701 Form C Reduced Shank Chipbreaker Tap, Right Hand Cutting, 1-1/8-8 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, TiN Coated, HSS-E

ManufacturerEmuge

Part #826505129

MFG #CU573701.5247

Emuge Chipbreaker Tap, Form C Reduced Shank, Series: Rekord 2D-Z-BF CU573701, Measurement System: Imperial, UN, 1-1/8-8, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiN Coated, Class of Fit: 2BX, Right Hand Cutting, 1.181 in Thread Length, 7.087 in Overall Length, 0.896 in Shank Dia, 5.512 in Shank Length, Right Hand Flute Direction, Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, No Through Coolant (Yes/No)

$566.06

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 7.087 in

Series: Rekord 2D-Z-BF CU573701

Shank Diameter: 0.896 in

Shank Length: 5.512 in

Thread Length: 1.181 in

Thread Size: 1-1/8-8

Thread Standard: UN

Through Coolant (Yes/No): No

Type: Form C Reduced Shank

Rekord D-Z-BF tap with CBTz geometry is a slow spiral, chip breaker design for blind holes, especially CNC machines with synchronous feed control
BF chamfer grind helps ensure short chip formation
TiN coated for additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Chipbreaker Tap, Form C Reduced Shank, Series: Rekord 2D-Z-BF CU573701, Measurement System: Imperial, UN, 1-1/8-8, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiN Coated, Class of Fit: 2BX, Right Hand Cutting, 1.181 in Thread Length, 7.087 in Overall Length, 0.896 in Shank Dia, 5.512 in Shank Length, Right Hand Flute Direction, Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, No Through Coolant (Yes/No)

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 7.087 in

Series: Rekord 2D-Z-BF CU573701

Shank Diameter: 0.896 in

Shank Length: 5.512 in

Thread Length: 1.181 in

Thread Size: 1-1/8-8

Thread Standard: UN

Through Coolant (Yes/No): No

Type: Form C Reduced Shank

Rekord D-Z-BF tap with CBTz geometry is a slow spiral, chip breaker design for blind holes, especially CNC machines with synchronous feed control
BF chamfer grind helps ensure short chip formation
TiN coated for additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
