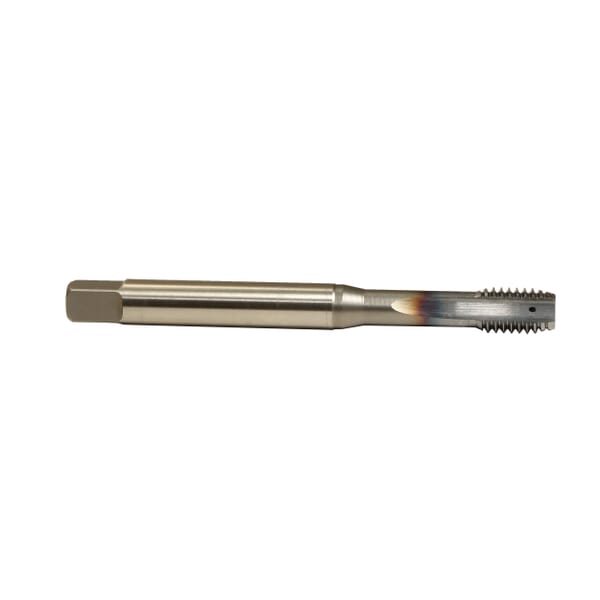

Name: Emuge BW179401.5045 Rekord 1A-SPEED IKZN BW179401 Form C Reinforced Shank Straight Flute Machine Tap, Right Hand Cutting, 3/8-24 Thread, Modified Bottoming Chamfer, 4 Flutes, TiCN Coated, HSS-E
Brand: Emuge-Franken
SKU: EMUGE_Q1_2019_005743
Availability: OutOfStock

Emuge-Franken

Emuge BW179401.5045 Rekord 1A-SPEED IKZN BW179401 Form C Reinforced Shank Straight Flute Machine Tap, Right Hand Cutting, 3/8-24 Thread, Modified Bottoming Chamfer, 4 Flutes, TiCN Coated, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge BW179401.5045 Rekord 1A-SPEED IKZN BW179401 Form C Reinforced Shank Straight Flute Machine Tap, Right Hand Cutting, 3/8-24 Thread, Modified Bottoming Chamfer, 4 Flutes, TiCN Coated, HSS-E

ManufacturerEmuge

Part #826504958

MFG #BW179401.5045

Emuge Straight Flute Machine Tap, Form C Reinforced Shank, Series: Rekord 1A-SPEED IKZN BW179401, Measurement System: Imperial, UNF, 3/8-24, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 2BX, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.381 in Shank Dia, 2.4 in Shank Length, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, Yes Through Coolant (Yes/No)

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Cast Iron, Aluminum Alloys and Copper Alloys

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 3.937 in

Series: Rekord 1A-SPEED IKZN BW179401

Shank Diameter: 0.381 in

Shank Length: 2.4 in

Thread Length: 0.866 in

Thread Size: 3/8-24

Thread Standard: UNF

Through Coolant (Yes/No): Yes

Type: Form C Reinforced Shank

Speed taps are able to operate at higher cutting speeds than conventional designs
Rekord A-SPEED is a straight flute design for high speed tapping in short chipping materials
IKZN - radial coolant hole design
TiCN coated for additional wear resistance and tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Straight Flute Machine Tap, Form C Reinforced Shank, Series: Rekord 1A-SPEED IKZN BW179401, Measurement System: Imperial, UNF, 3/8-24, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 2BX, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.381 in Shank Dia, 2.4 in Shank Length, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, Yes Through Coolant (Yes/No)

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Cast Iron, Aluminum Alloys and Copper Alloys

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 3.937 in

Series: Rekord 1A-SPEED IKZN BW179401

Shank Diameter: 0.381 in

Shank Length: 2.4 in

Thread Length: 0.866 in

Thread Size: 3/8-24

Thread Standard: UNF

Through Coolant (Yes/No): Yes

Type: Form C Reinforced Shank

Speed taps are able to operate at higher cutting speeds than conventional designs
Rekord A-SPEED is a straight flute design for high speed tapping in short chipping materials
IKZN - radial coolant hole design
TiCN coated for additional wear resistance and tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Straight Flute Machine Tap, Form C Reinforced Shank, Series: Rekord 1A-SPEED IKZN BW179401, Measurement System: Imperial, UNF, 3/8-24, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 2BX, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.381 in Shank Dia, 2.4 in Shank Length, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, Yes Through Coolant (Yes/No)

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
