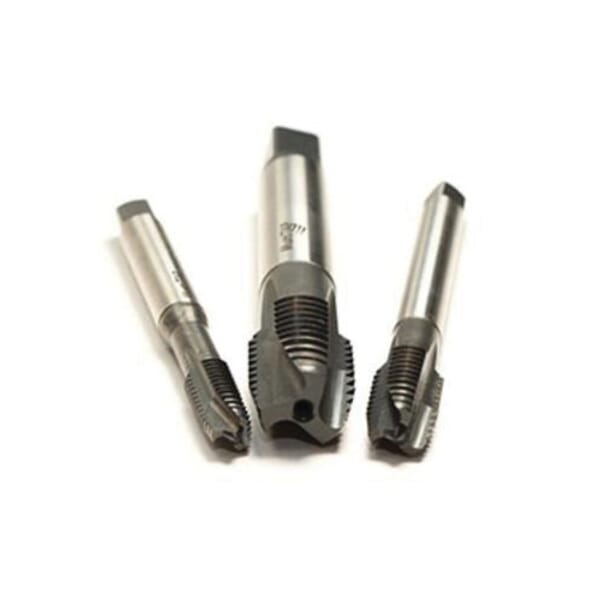

Name: MultiTAP MULTITAP C1577300.0112 Spiral Point Tap, Right Hand Cutting, M12x1.75 Thread, Plug Chamfer, 3 Flutes, Ne2 Coated, HSS-E
Brand: Emuge-Franken
SKU: EMUGE_Q4_17_000395
Availability: OutOfStock

Emuge-Franken

MultiTAP MULTITAP C1577300.0112 Spiral Point Tap, Right Hand Cutting, M12x1.75 Thread, Plug Chamfer, 3 Flutes, Ne2 Coated, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

MultiTAP MULTITAP C1577300.0112 Spiral Point Tap, Right Hand Cutting, M12x1.75 Thread, Plug Chamfer, 3 Flutes, Ne2 Coated, HSS-E

ManufacturerMultiTAP

Part #826504401

MFG #C1577300.0112

MultiTAP MULTITAP Spiral Point Tap, Series: 266, Measurement System: Metric, Coarse, M12x1.75, Plug Chamfer, 3 Flutes, HSS-E, Ne2 Coated, Class of Fit: 6H, Right Hand Cutting, 24 mm Thread Length, 110 mm Overall Length, 9 mm Shank Dia, Carbon Steel, Steel Alloy, Stainless Steel, Aluminum and Copper Material Application, No Through Coolant (Yes/No)

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Plug

Class of Fit: 6H

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: Ne2 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Carbon Steel, Steel Alloy, Stainless Steel, Aluminum and Copper

Measurement System: Metric

Number of Flutes: 3

Overall Length: 110 mm

Shank Diameter: 9 mm

Thread Length: 24 mm

Thread Size: M12x1.75

Thread Standard: Coarse

Through Coolant (Yes/No): No

NE2 surface treatment - oxidation - in a special installation, the tools are exposed to hot steam
This leads to the formation of a dark oxide layer on the tool surface
This oxide layer protects the surface and acts as a good carrier of lubricants
Cold welding which occurs especially with low carbon, soft steels, can be prevented in this way
This all purpose design is well suited to the job shop, short run tapping environment
Form B (4-5 P) chamfer length

DIN Rated

MultiTAP MULTITAP Spiral Point Tap, Series: 266, Measurement System: Metric, Coarse, M12x1.75, Plug Chamfer, 3 Flutes, HSS-E, Ne2 Coated, Class of Fit: 6H, Right Hand Cutting, 24 mm Thread Length, 110 mm Overall Length, 9 mm Shank Dia, Carbon Steel, Steel Alloy, Stainless Steel, Aluminum and Copper Material Application, No Through Coolant (Yes/No)

Catalog

Manufacturer Name: Emuge-Franken

Chamfer Type: Plug

Class of Fit: 6H

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: Ne2 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Carbon Steel, Steel Alloy, Stainless Steel, Aluminum and Copper

Measurement System: Metric

Number of Flutes: 3

Overall Length: 110 mm

Shank Diameter: 9 mm

Thread Length: 24 mm

Thread Size: M12x1.75

Thread Standard: Coarse

Through Coolant (Yes/No): No

NE2 surface treatment - oxidation - in a special installation, the tools are exposed to hot steam
This leads to the formation of a dark oxide layer on the tool surface
This oxide layer protects the surface and acts as a good carrier of lubricants
Cold welding which occurs especially with low carbon, soft steels, can be prevented in this way
This all purpose design is well suited to the job shop, short run tapping environment
Form B (4-5 P) chamfer length

DIN Rated

MultiTAP MULTITAP Spiral Point Tap, Series: 266, Measurement System: Metric, Coarse, M12x1.75, Plug Chamfer, 3 Flutes, HSS-E, Ne2 Coated, Class of Fit: 6H, Right Hand Cutting, 24 mm Thread Length, 110 mm Overall Length, 9 mm Shank Dia, Carbon Steel, Steel Alloy, Stainless Steel, Aluminum and Copper Material Application, No Through Coolant (Yes/No)
